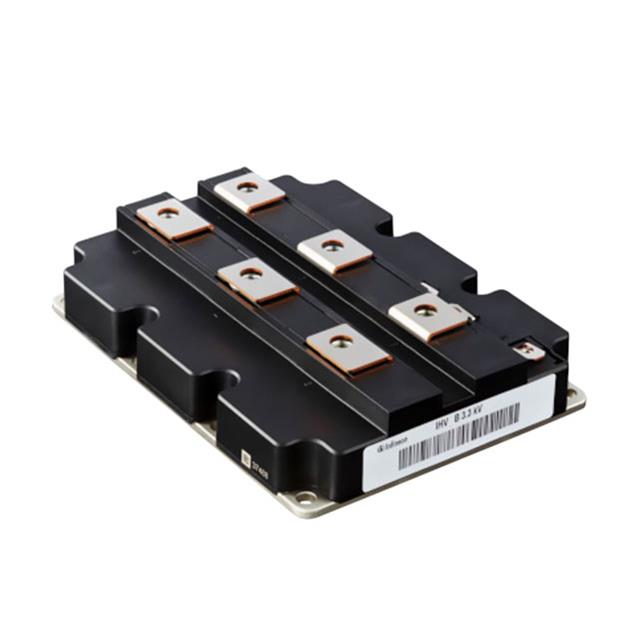

FZ1800R45HL4S7BPSA1
IGBT MODULEManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FZ1800R45HL4S7BPSA1 is an IHM-B series IGBT Module featuring Trench Field Stop technology. This module offers a substantial 4500 V collector-emitter breakdown voltage and a maximum collector current of 1800 A, with a corresponding Vce(on) of 2.6 V at 25 V gate-emitter voltage and 1800 A. The module has a maximum power dissipation of 4,000,000 W. It is designed for chassis mounting and utilizes the AG-IHVB190 package. The operating temperature range is -40°C to 150°C (TJ). This component is suitable for high-power applications, including industrial motor drives and renewable energy systems.
Additional Information
Series: IHM-BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 25V, 1800A |
| NTC Thermistor | No |
| Supplier Device Package | AG-IHVB190 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 1800 A |
| Voltage - Collector Emitter Breakdown (Max) | 4500 V |
| Power - Max | 4000000 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 297 nF @ 25 V |
