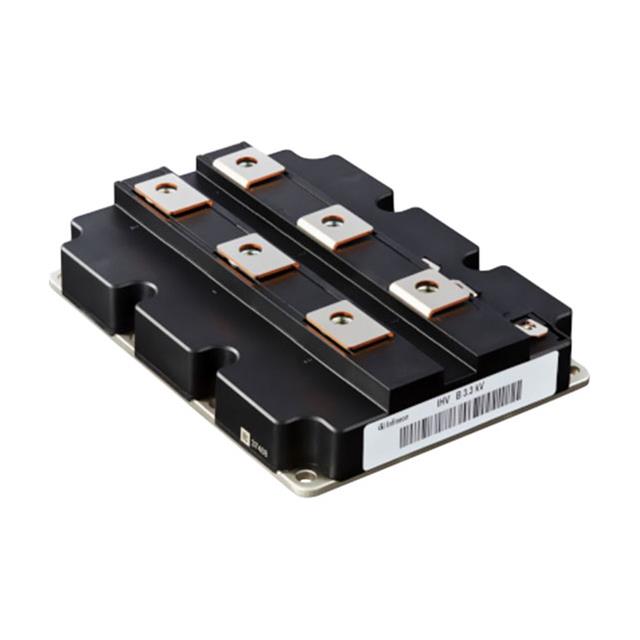

FZ1800R45HL4BPSA1
IHV IHM T XHP 3 3-6 5K AG-IHVB19Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FZ1800R45HL4BPSA1 is a high-power IGBT module featuring Trench Field Stop technology. This module is configured with 3 independent IGBTs, offering a collector-emitter breakdown voltage of 4500 V and a maximum collector current of 1800 A. The on-state voltage drop (Vce(on)) is specified at 2.8 V at 15 V gate-emitter voltage and 1.8 kA collector current. Designed for demanding applications, it has a maximum power dissipation of 4000 W and an operating temperature range of -40°C to 150°C. The module utilizes a chassis mount for effective thermal management. This component is commonly found in industrial motor drives, power grid systems, and renewable energy applications. The AG-IHVB190 package is supplied in bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 3 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 1.8kA |
| NTC Thermistor | No |
| Supplier Device Package | AG-IHVB190 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 1800 A |
| Voltage - Collector Emitter Breakdown (Max) | 4500 V |
| Power - Max | 4000 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 297 nF @ 25 V |
