FZ1200R45HL4S7BPSA1
IHV IHM TManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

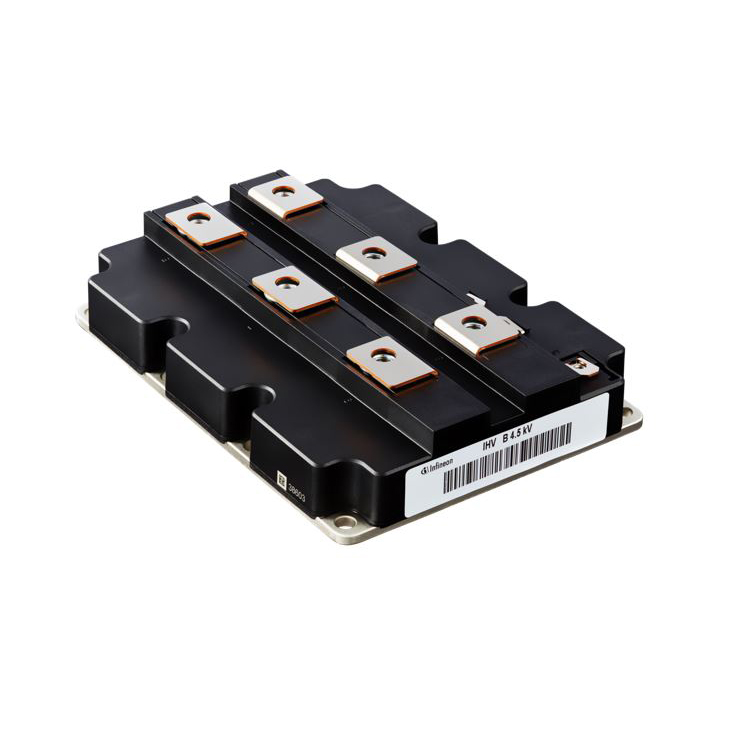

Infineon Technologies FZ1200R45HL4S7BPSA1 is an IGBT module featuring Trench Field Stop technology. This component offers a robust 4300 V collector-emitter breakdown voltage and a maximum collector current of 1.2 kA. The module is designed for chassis mounting and boasts a significant power dissipation capability of 2,400,000 W. With a standard input and an input capacitance (Cies) of 223000 pF at 25 V, it is suitable for high-power applications. The operating temperature range is from -40°C to 150°C (TJ). This device finds application in demanding sectors such as industrial motor drives, renewable energy systems, and power grids, where high voltage and current handling are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 3 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.55V @ 25V, 1.2kA |
| NTC Thermistor | No |
| Supplier Device Package | - |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 1.2 kA |
| Voltage - Collector Emitter Breakdown (Max) | 4300 V |
| Power - Max | 2400000 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 223000 pF @ 25 V |
