FS770R08A6P2BBPSA1
HYBRID PACK DRIVEManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies HybridPACK™ FS770R08A6P2BBPSA1 is a high-performance IGBT module designed for three-phase inverter applications. This chassis-mount module features a Trench Field Stop IGBT structure, providing optimized switching characteristics. It offers a breakdown voltage of 750 V and a continuous collector current capability of 450 A, with a maximum power dissipation of 654 W. The module includes an integrated NTC thermistor for thermal monitoring and protection. Key electrical parameters include a Vce(on) of 1.35V at 15V Vge and 450A Ic, and an input capacitance (Cies) of 80 nF at 50 V. Operating temperature range is -40°C to 150°C (TJ). The Infineon Technologies FS770R08A6P2BBPSA1 is suitable for use in industrial drives, renewable energy systems, and electric vehicle powertrains.
Additional Information
Series: HybridPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.35V @ 15V, 450A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-HYBRIDD-1 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 450 A |
| Voltage - Collector Emitter Breakdown (Max) | 750 V |
| Power - Max | 654 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 80 nF @ 50 V |
Request a Quote
Clients Also Buy

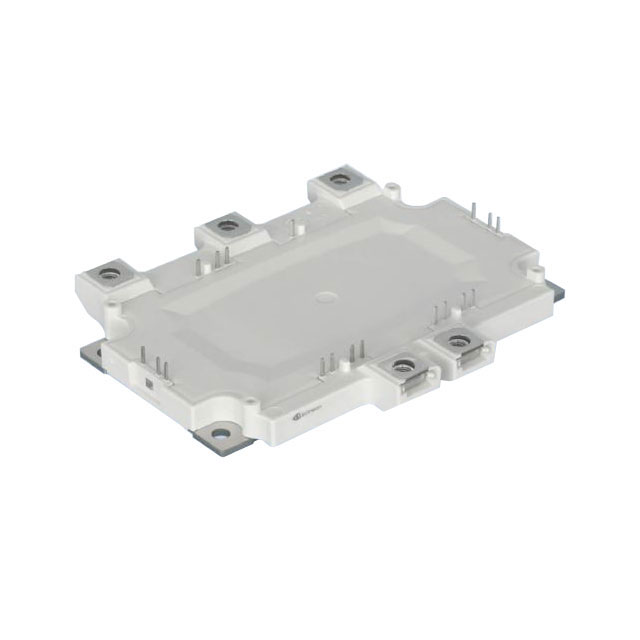

FS400R07A1E3S7BOMA1
IGBT MODULE

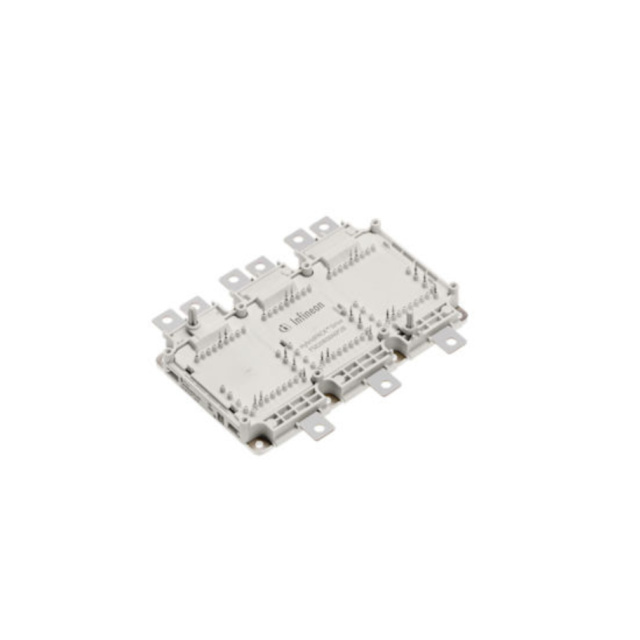

FS820R08A6P2BBPSA1
