FS75R12KE3BOSA1
IGBT MOD 1200V 105A 350WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

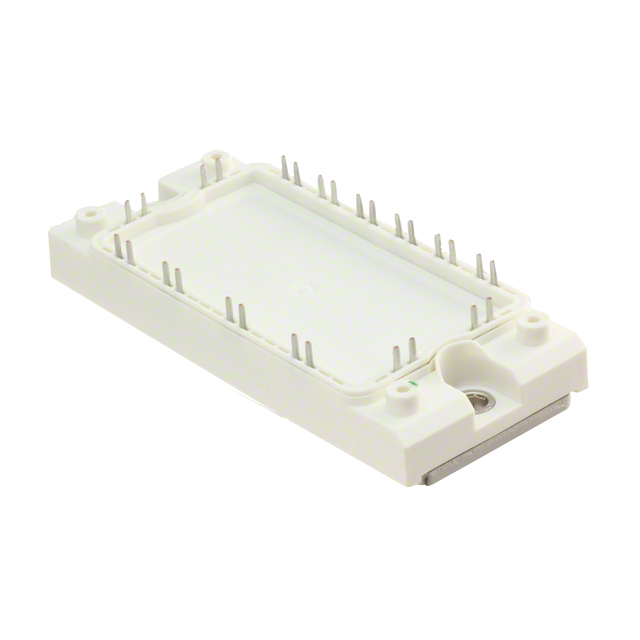

Infineon Technologies FS75R12KE3BOSA1 is a NPT IGBT module designed for three-phase inverter applications. This chassis mount module offers a collector-emitter voltage of 1200 V and a continuous collector current of 105 A. The module dissipates a maximum power of 350 W. Key electrical parameters include a Vce(on) of 2.15 V at 15 V Vge and 75 A Ic, with an input capacitance (Cies) of 5.3 nF at 25 V. It features an integrated NTC thermistor for temperature monitoring and operates at junction temperatures up to 150°C. This component is suitable for power conversion systems in industrial automation, renewable energy, and electric vehicle powertrain applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 105 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 350 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 5.3 nF @ 25 V |
