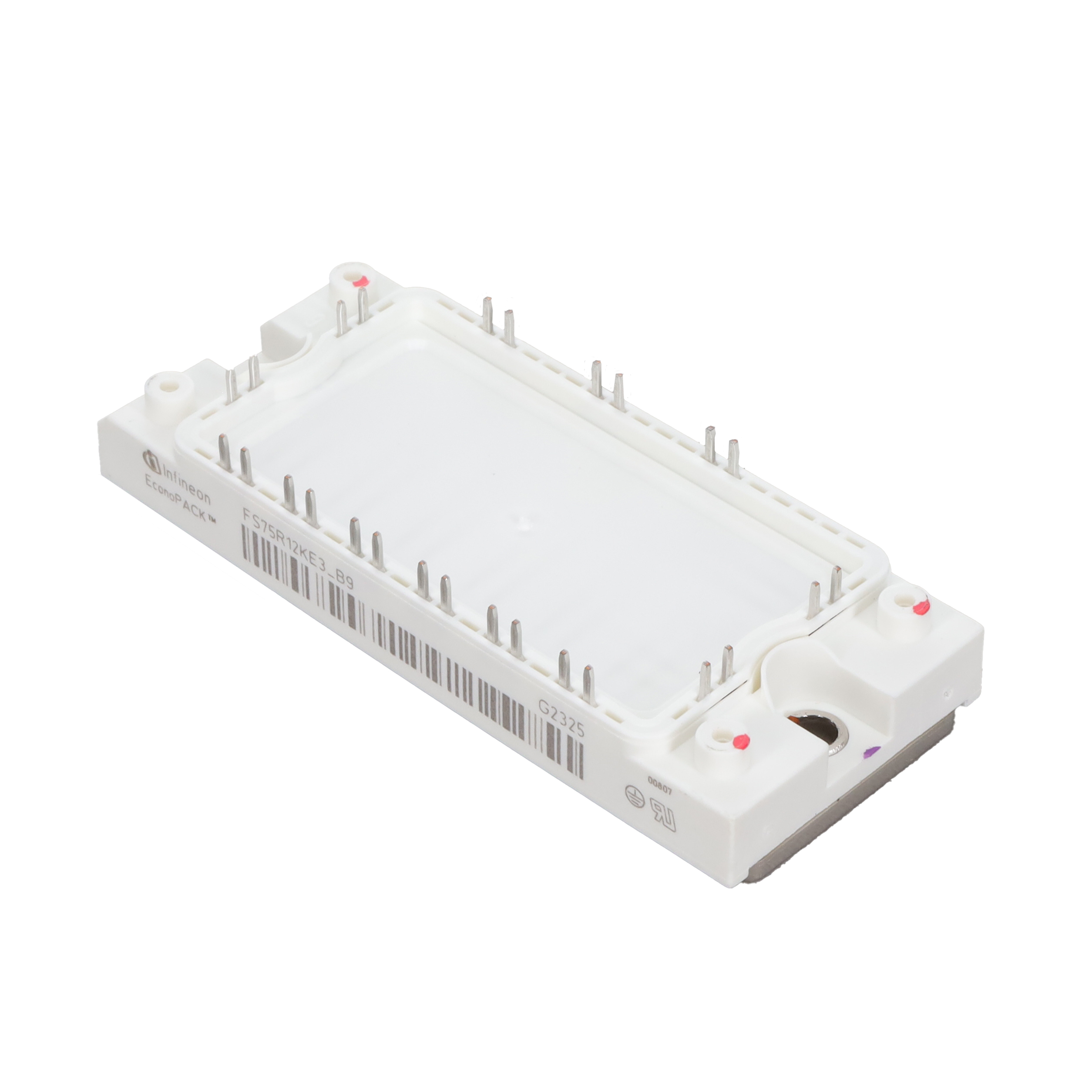

FS75R12KE3B9BPSA1
LOW POWER ECONO AG-ECONO2B-311Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Full Bridge Inverter 1200 V 105 A 350 W Chassis Mount AG-ECONO2B
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO2B |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 105 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 350 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 5.3 nF @ 25 V |
Request a Quote
