FS75R07W2E3B11ABOMA1
IGBT MODULESManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

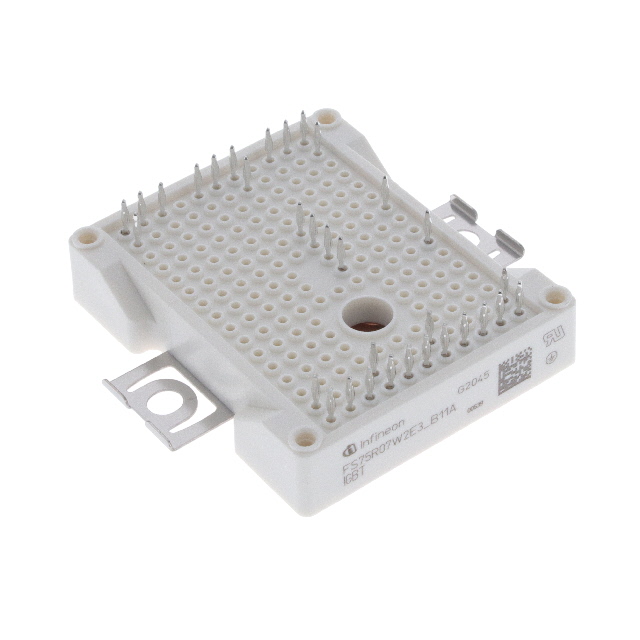

Infineon Technologies EasyPACK™ IGBT Module, part number FS75R07W2E3B11ABOMA1. This Trench Field Stop IGBT module features a three-phase inverter configuration with a robust 650 V collector-emitter breakdown voltage and a 95 A continuous collector current. Optimized for demanding applications, it offers a maximum power dissipation of 275 W. The module incorporates an NTC thermistor for thermal monitoring and utilizes the ACEPACK™ 2 package for efficient chassis mounting. Key electrical characteristics include a low Vce(on) of 1.9 V at 15 V gate-emitter voltage and 75 A collector current, and an input capacitance (Cies) of 4.6 nF at 25 V. Operating temperature range is -40°C to 150°C (TJ). This component is widely deployed in industrial motor drives, renewable energy systems, and power generation applications.
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | ACEPACK™ 2 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 95 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 275 W |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | 4.6 nF @ 25 V |
