FS520R12A8P1LBHPSA1
FS520R12A8P1LBHPSA1Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

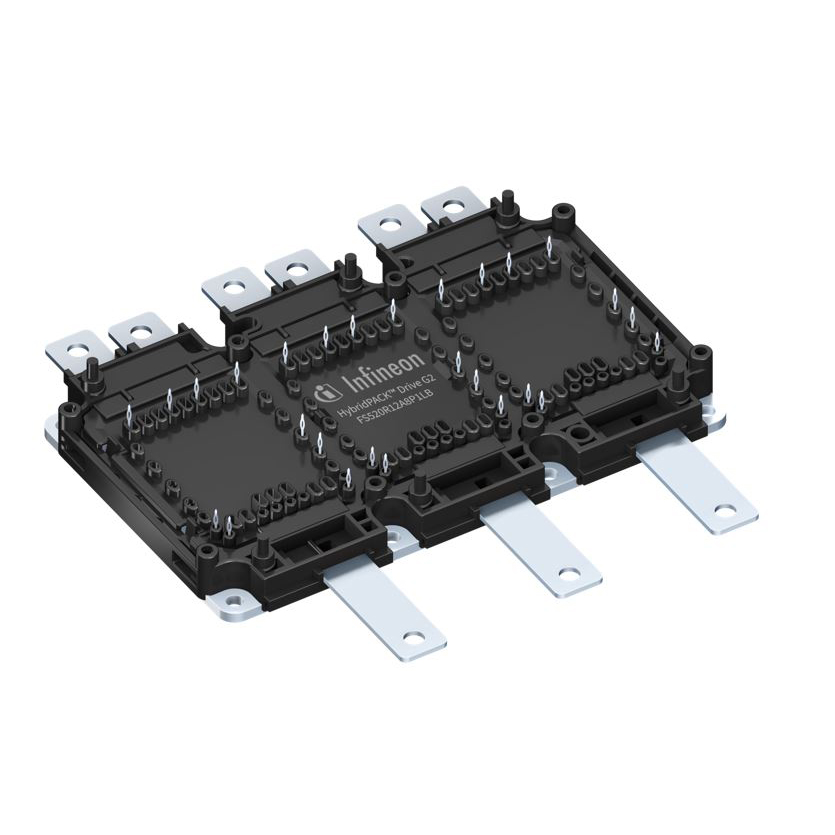

Infineon Technologies FS520R12A8P1LBHPSA1 is a HybridPACK™ IGBT module featuring three independent IGBTs. This module is designed for high-power applications, boasting a 1200 V collector-emitter breakdown voltage and a maximum collector current of 300 A. The Vce(on) is specified at 1.58V at 15V gate-emitter voltage and 300A collector current. With a maximum power rating of 1 kW and an operating temperature range of -40°C to 175°C (TJ), this chassis-mount module is suitable for demanding environments. Key parameters include an input capacitance (Cies) of 24600 pF at 25 V. This component finds application in industrial motor drives and power conversion systems.
Additional Information
Series: HybridPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 3 Independent |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.58V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | - |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1 kW |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 24600 pF @ 25 V |
