FS450R17OE4PBOSA1
IGBT MOD 1700V 900A 20MWManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Full Bridge 1700 V 900 A 20 mW Chassis Mount Module
Additional Information
Series: EconoPACK™+RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge |
| Operating Temperature | -40°C ~ 150°C |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 450A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 900 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 3 mA |
| Input Capacitance (Cies) @ Vce | 36 nF @ 25 V |
Request a Quote
Clients Also Buy

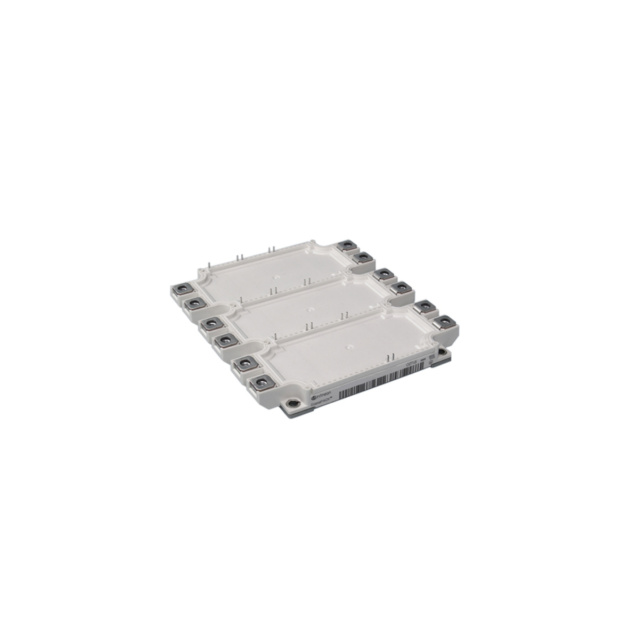

FS225R17OE4BOSA1
