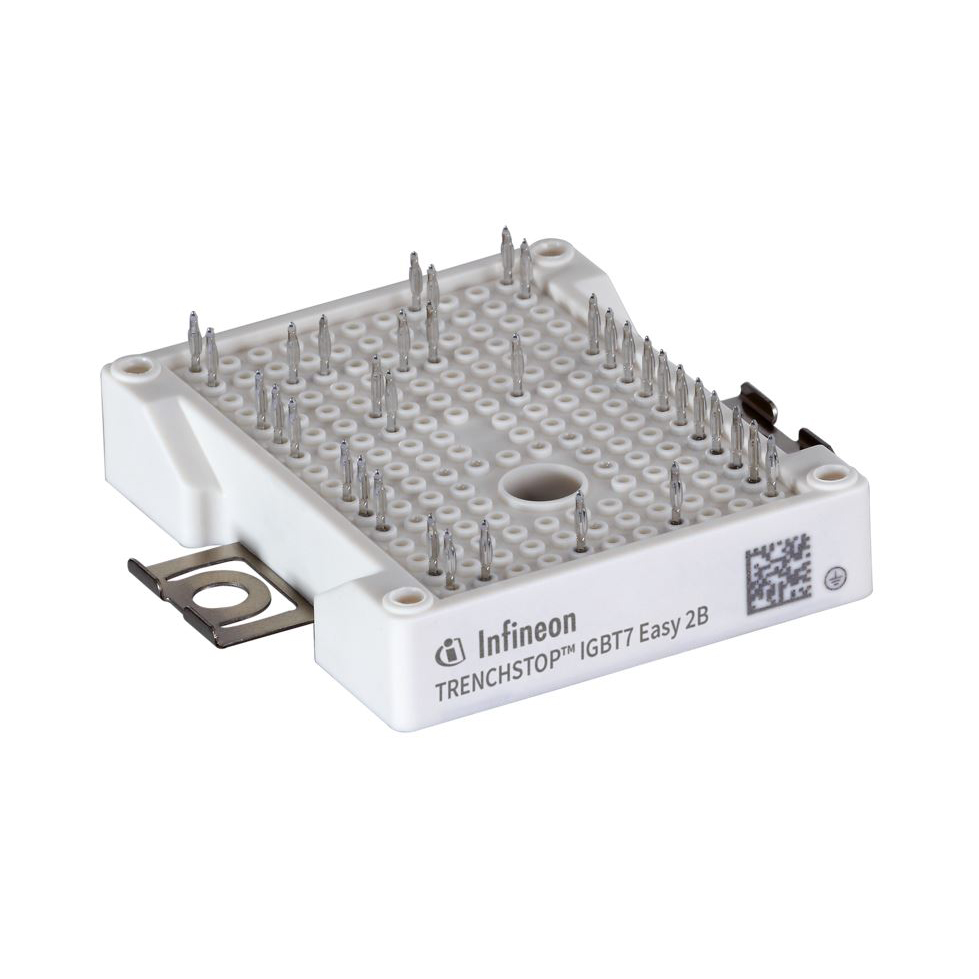

FS3L40R12W2H7PB11BPSA1
FS3L40R12W2H7PB11BPSA1Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Three Level Inverter 1200 V 25 A 20 mW Chassis Mount
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 35A |
| NTC Thermistor | Yes |
| Supplier Device Package | - |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 25 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 24 µA |
| Input Capacitance (Cies) @ Vce | 25200 pF @ 25 V |
Request a Quote
Clients Also Buy

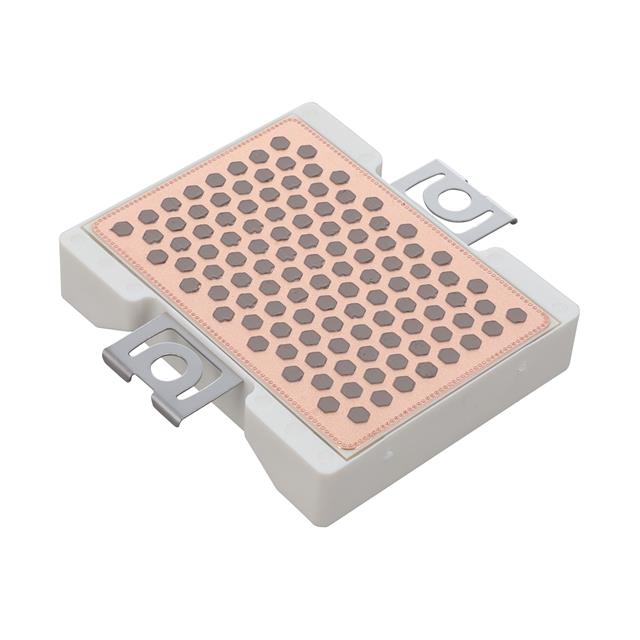

F3L8MR12W2M1HPB11BPSA1
