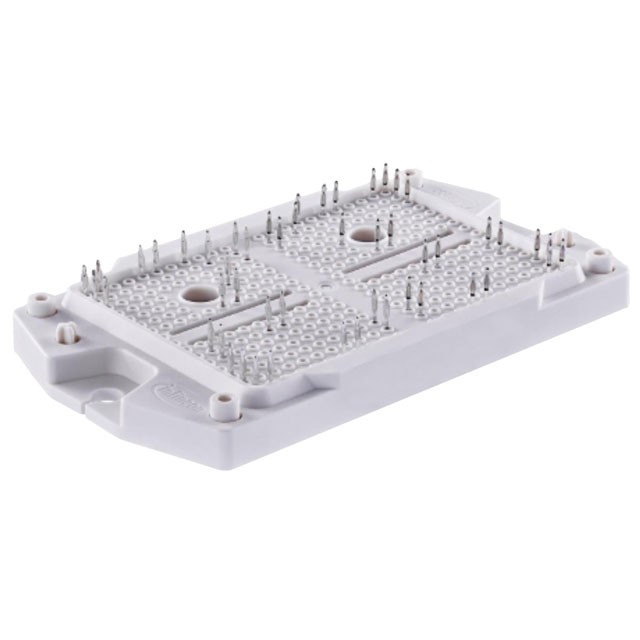

FS3L400R10W3S7FB11BPSA1
950 V 400 A EASYPACK MODULE WITHManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Three Level Inverter 950 V 120 A 20 mW Chassis Mount AG-EASY3B
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.48V @ 15V, 45A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-EASY3B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 950 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 26 µA |
| Input Capacitance (Cies) @ Vce | 12.6 nF @ 25 V |
