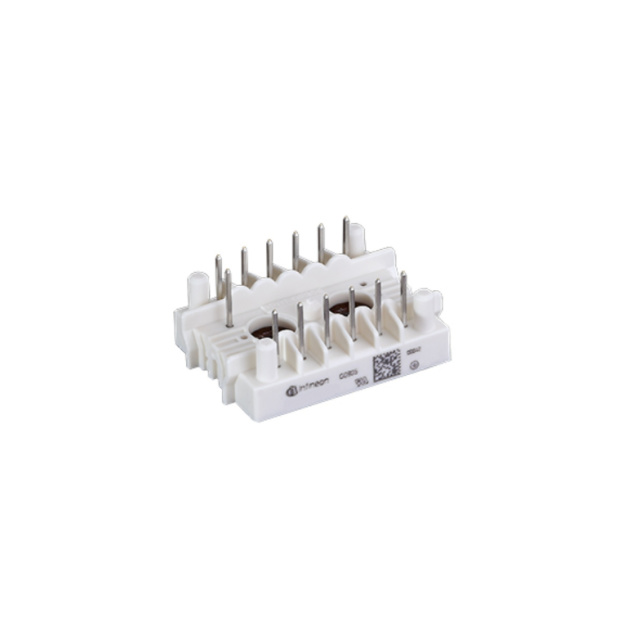

FS30R06VE3BOMA1
IGBT MODULE 600V 34A 88WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
The Infineon Technologies FS30R06VE3BOMA1 is a robust IGBT Module designed for three-phase inverter applications. This chassis mount module features a 600 V collector-emitter breakdown voltage rating and a maximum collector current of 34 A, with a power dissipation capability of 88 W. The module exhibits a typical Vce(on) of 2V at 15V gate-emitter voltage and 30A collector current. Its input capacitance (Cies) is rated at 1.65 nF at 25 V. Operating across a wide temperature range of -40°C to 150°C, this component is suitable for demanding industrial environments. The Infineon Technologies FS30R06VE3BOMA1 is commonly utilized in power conversion systems across industries such as industrial automation, renewable energy, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 150°C |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 34 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 88 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 1.65 nF @ 25 V |
