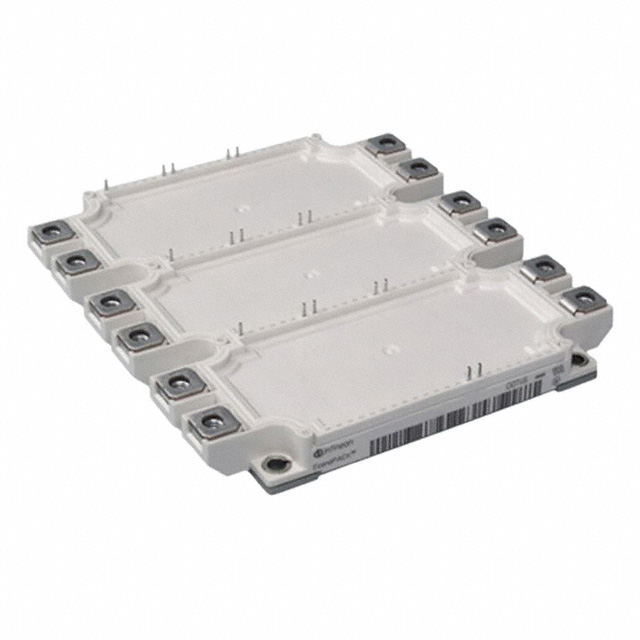

FS300R12KE3BOSA1
IGBT MOD 1200V 500A 1450WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FS300R12KE3BOSA1 is a Trench Field Stop IGBT Module designed for high-power applications. This module features a 1200 V collector-emitter breakdown voltage and a maximum collector current of 500 A. With a power dissipation capability of 1450 W, it is suitable for demanding power conversion tasks. The module incorporates an NTC thermistor for temperature monitoring and is designed for efficient operation with a Vce(on) of 2.15V at 15V gate-emitter voltage and 300A collector current. Its input capacitance (Cies) is 21 nF at 25 V. The FS300R12KE3BOSA1 is packaged as a chassis mount module, facilitating robust thermal management. This component is commonly utilized in industrial motor drives, renewable energy systems, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 300A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 500 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1450 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V |
