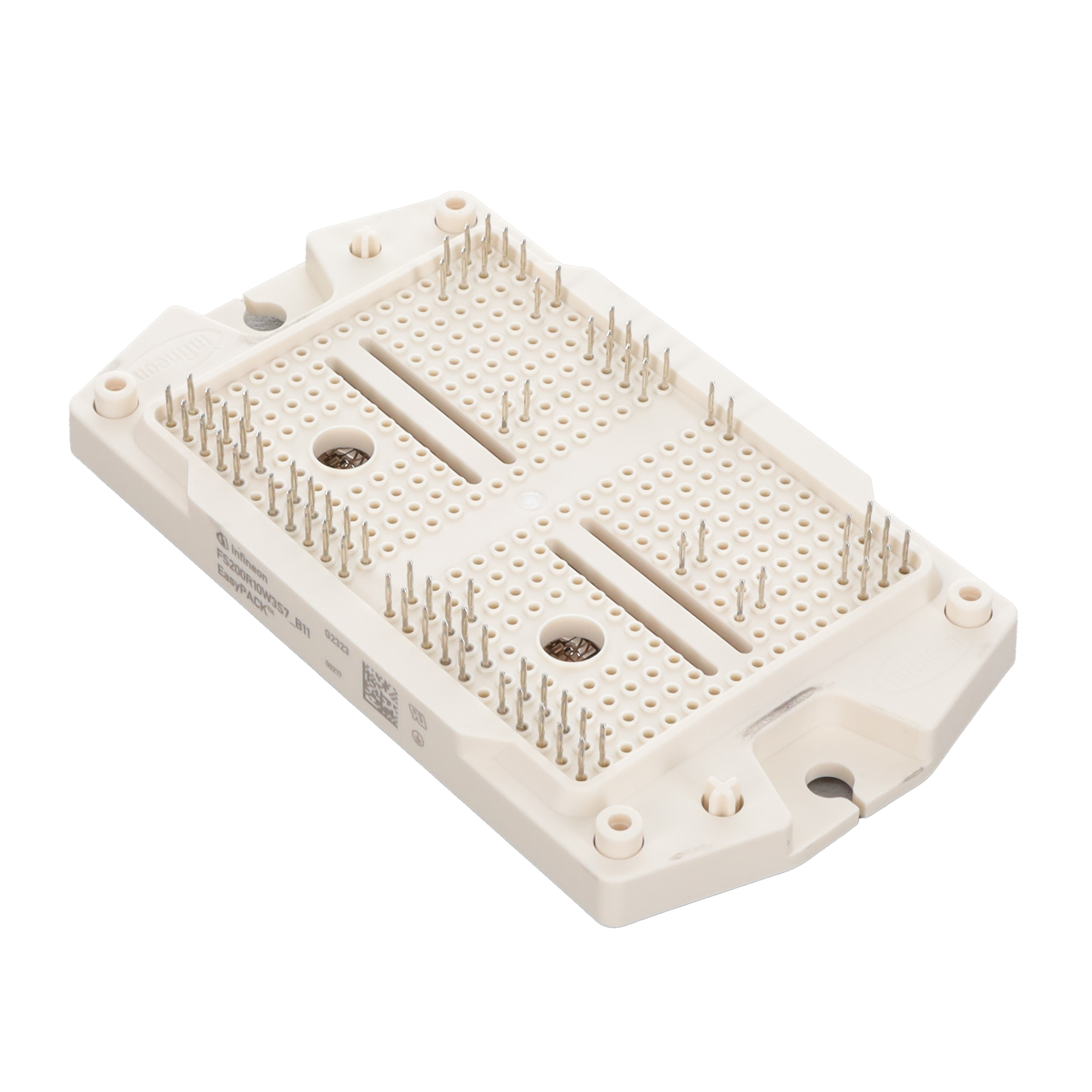

FS200R10W3S7B11BPSA1
LOW POWER EASYManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Full Bridge Inverter 950 V 130 A 20 mW Chassis Mount AG-EASY3B
Additional Information
Series: EasyPACK™, TRENCHSTOP™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.98V @ 15V, 150A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-EASY3B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 130 A |
| Voltage - Collector Emitter Breakdown (Max) | 950 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 53 µA |
| Input Capacitance (Cies) @ Vce | 13 nF @ 25 V |
Request a Quote
Clients Also Buy
FS3L100R07W3S5B11BPSA1
LOW POWER EASY AG-EASY3B-1

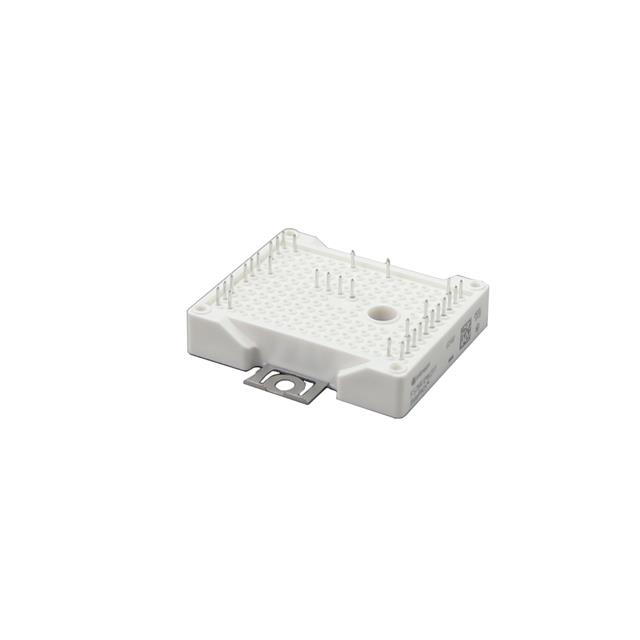

FS75R12W2T7BPSA1
