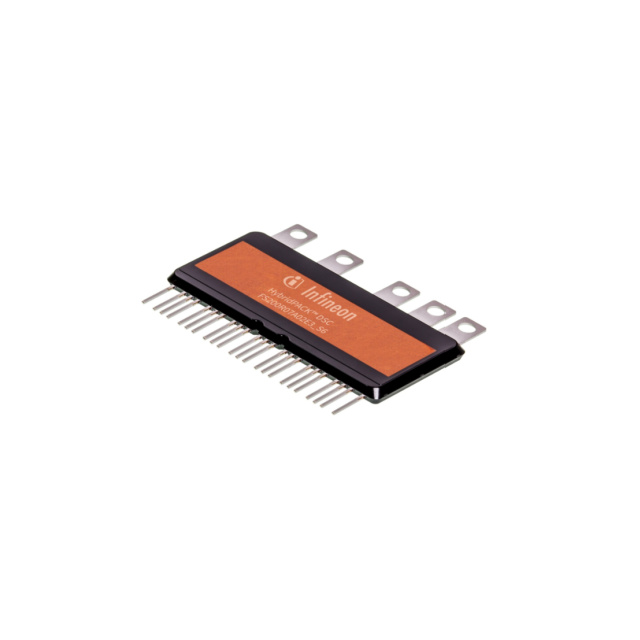

FS200R07A02E3S6BKSA2
IGBT MODULE HYBRID 28MDIPManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Three Phase 700 V 200 A 694 W Chassis Mount PG-MDIP-28
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 200A |
| NTC Thermistor | Yes |
| Supplier Device Package | PG-MDIP-28 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 700 V |
| Power - Max | 694 W |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 13.5 nF @ 25 V |
