FS150R12N2T7BPSA1
LOW POWER ECONO AG-ECONO2-6Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

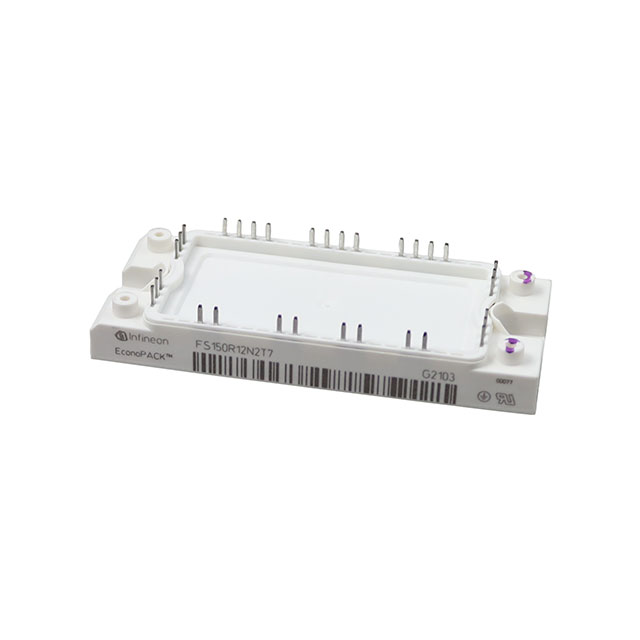

Infineon Technologies presents the FS150R12N2T7BPSA1, an IGBT module from the EconoPACK™ 2 series. This module features Trench Field Stop IGBT technology and is configured as a three-level inverter. It offers a maximum collector emitter voltage of 1200 V and a continuous collector current capability of 150 A. The device exhibits a low on-state voltage of 1.8 V at 15 V gate-emitter voltage and 150 A collector current. Input capacitance (Cies) is specified at 30.1 nF at 25 V. The module includes an integrated NTC thermistor for temperature monitoring. Mounting is via chassis mount. This component is suitable for applications in industrial drives, renewable energy systems, and power electronics. Operating temperature range is -40°C to 175°C (TJ). The supplier device package is AG-ECONO2.
Additional Information
Series: EconoPACK™ 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 150A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO2 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 1.2 µA |
| Input Capacitance (Cies) @ Vce | 30.1 nF @ 25 V |
