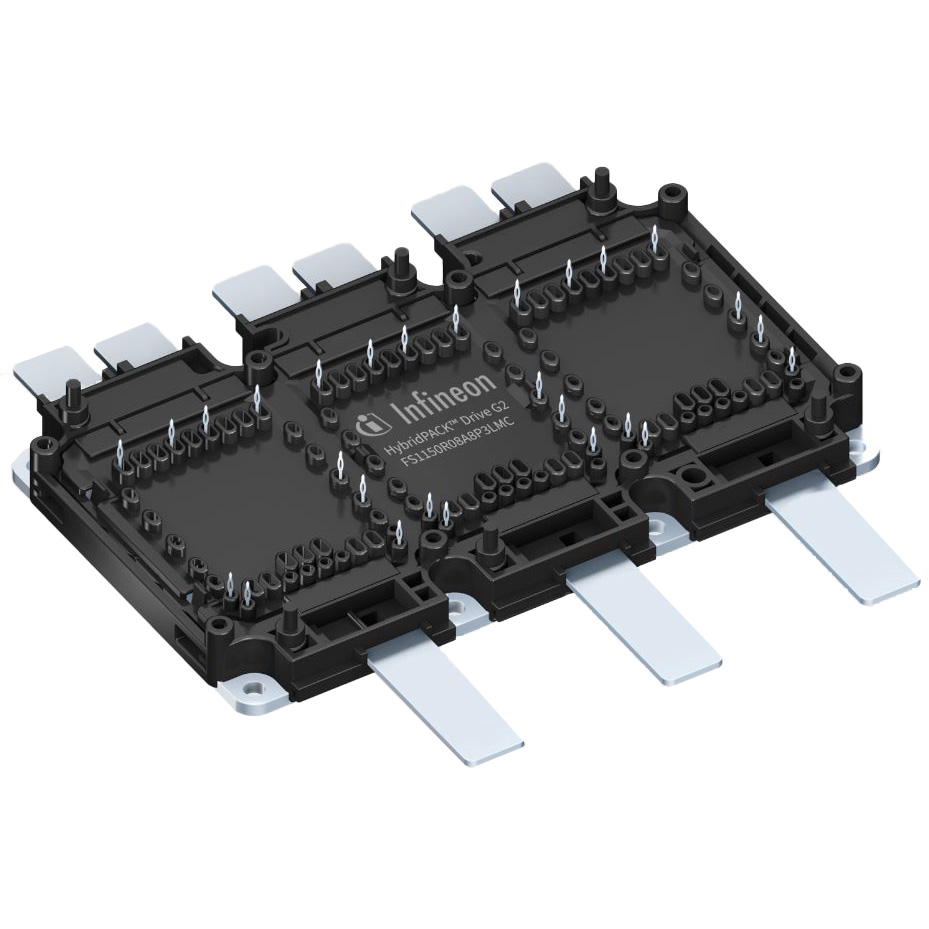

FS1150R08A8P3LMCHPSA1
FS1150R08A8P3LMCHPSA1Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Three Phase Inverter 750 V 1.15 kA 1 kW Chassis Mount
Additional Information
Series: HybridPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.21V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | - |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 1.15 kA |
| Voltage - Collector Emitter Breakdown (Max) | 750 V |
| Power - Max | 1 kW |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 60800 pF @ 50 V |
Request a Quote
