FS1150R08A8P3LBCHPSA1
FS1150R08A8P3LBCHPSA1Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

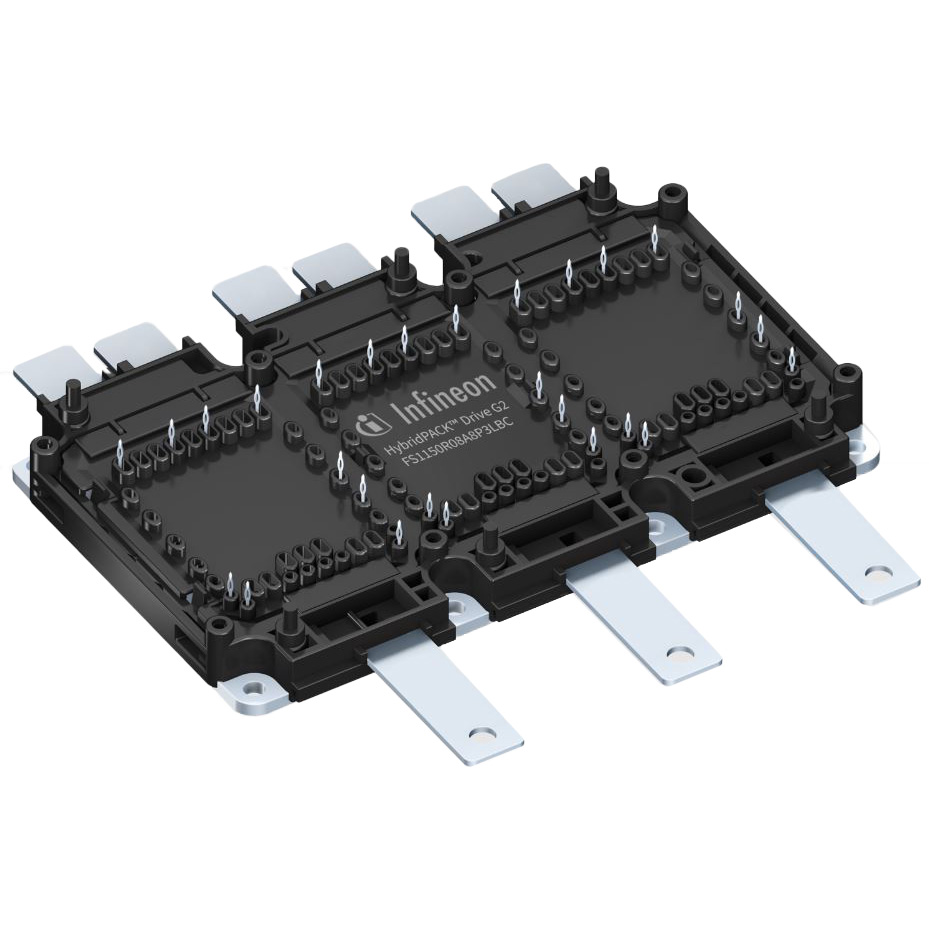

Infineon Technologies HybridPACK™ FS1150R08A8P3LBCHPSA1. This IGBT module is configured as a three-phase inverter, designed for high-power applications. It features a collector-emitter breakdown voltage of 750 V and a maximum collector current (Ic) rating of 1.15 kA. The module has a maximum power dissipation of 1 kW and a Vce(on) of 1.21V at 15V gate-emitter voltage and 600A collector current. Input capacitance (Cies) is 60800 pF at 50V. The FS1150R08A8P3LBCHPSA1 utilizes a chassis mount for thermal management and operates across a wide temperature range of -40°C to 175°C (TJ). This component is commonly found in electric vehicle powertrains and industrial motor drives.
Additional Information
Series: HybridPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.21V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | - |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 1.15 kA |
| Voltage - Collector Emitter Breakdown (Max) | 750 V |
| Power - Max | 1 kW |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 60800 pF @ 50 V |
