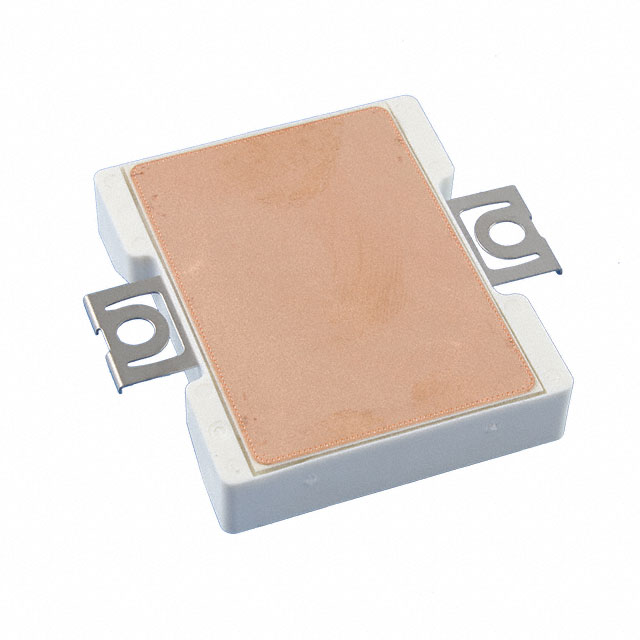

FS100R12W2T7B11BOMA1
IGBT MOD 1200V 100A 20MW EASYManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Single 1200 V 100 A Chassis Mount AG-EASY2B-1
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 175°C |
| Vce(on) (Max) @ Vge, Ic | 1.50V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-EASY2B-1 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Cutoff (Max) | 9 µA |
Request a Quote
