FP75R12N2T7BPSA1
LOW POWER ECONO AG-ECONO2B-711Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

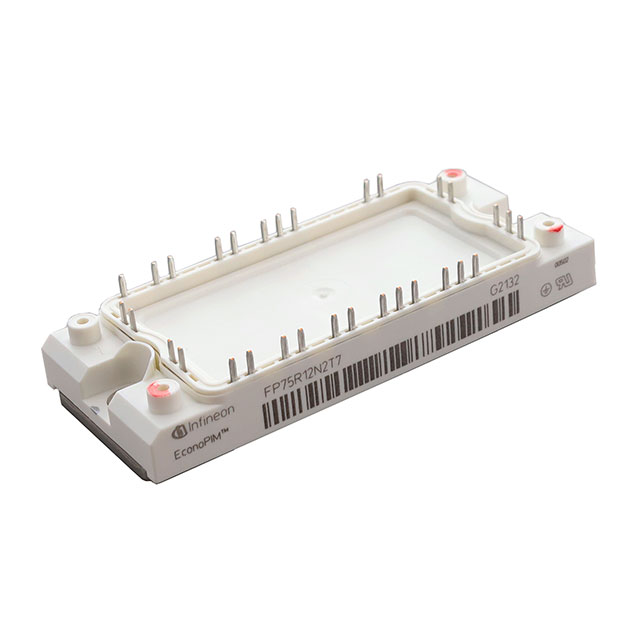

Infineon Technologies presents the FP75R12N2T7BPSA1, an IGBT Module from the EconoPIM™ 2 series. This module features a Trench Field Stop IGBT technology, configured as a three-phase inverter, and is rated for a maximum collector emitter voltage of 1200 V. It offers a continuous collector current capability of 75 A and a low on-state voltage (Vce(on)) of 1.55 V at 15 V gate-emitter voltage and 75 A collector current. The module includes an integrated NTC thermistor for temperature monitoring and is designed for chassis mounting. Applications for this component include power factor correction, industrial drives, and renewable energy systems. The input capacitance (Cies) is specified at 15.1 nF at 25 V. This device operates within an ambient temperature range of -40°C to 175°C (TJ).
Additional Information
Series: EconoPIM™ 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.55V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO2B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 14 µA |
| Input Capacitance (Cies) @ Vce | 15.1 nF @ 25 V |
