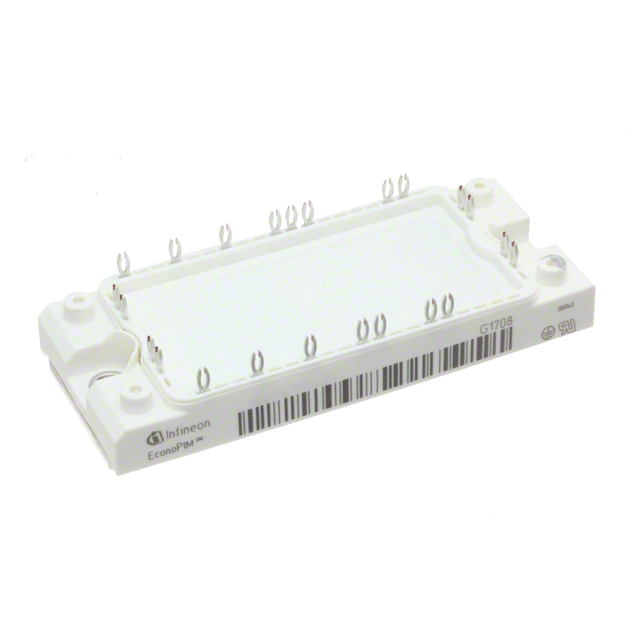

FP50R12KT4B11BOSA1
IGBT MOD 1200V 50A 280WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies EconoPIM™ 2 FP50R12KT4B11BOSA1 is a robust IGBT module designed for three-phase inverter applications. This chassis mount module features Trench Field Stop IGBT technology, providing a high breakdown voltage of 1200 V and a continuous collector current capability of 50 A. With a maximum power dissipation of 280 W and a low on-state voltage (Vce(on)) of 2.15 V at 15 V gate-emitter voltage and 50 A collector current, it ensures efficient power conversion. The module includes an integrated NTC thermistor for thermal monitoring and operates across a wide temperature range of -40°C to 150°C. This component is suitable for use in industrial automation, renewable energy systems, and electric vehicle powertrains.
Additional Information
Series: EconoPIM™ 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 280 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 2.8 nF @ 25 V |
