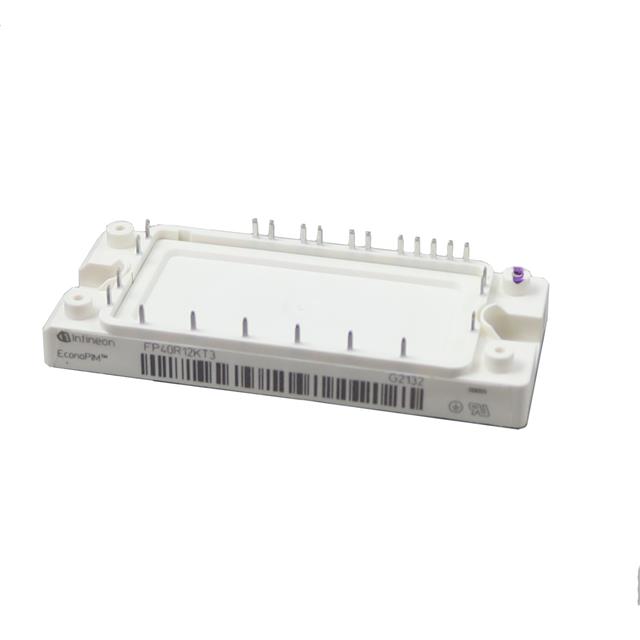

FP40R12KT3BPSA1
LOW POWER ECONOManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Three Phase Inverter 1200 V 55 A 105 W Chassis Mount AG-ECONO2-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 40A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO2-8 |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 55 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 105 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 2.5 nF @ 25 V |
Request a Quote
