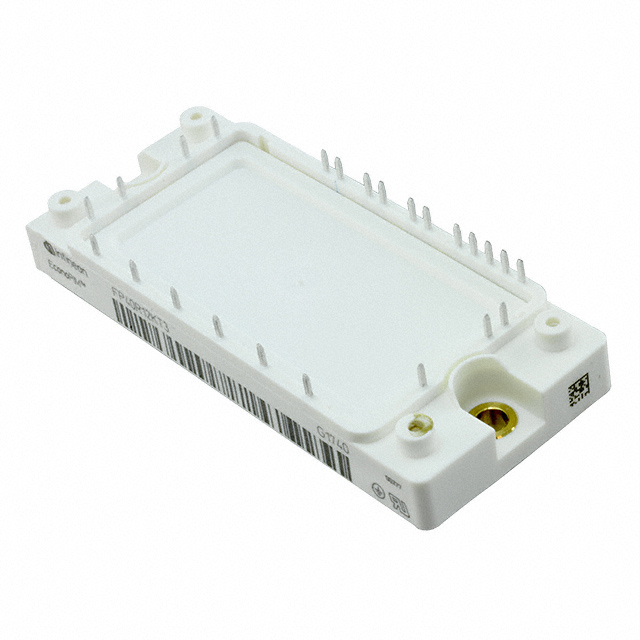

FP40R12KT3BOSA1
IGBT MOD 1200V 55A 210WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Three Phase Inverter 1200 V 55 A 210 W Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 125°C |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 40A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 55 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 210 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 2.5 nF @ 25 V |
Request a Quote
