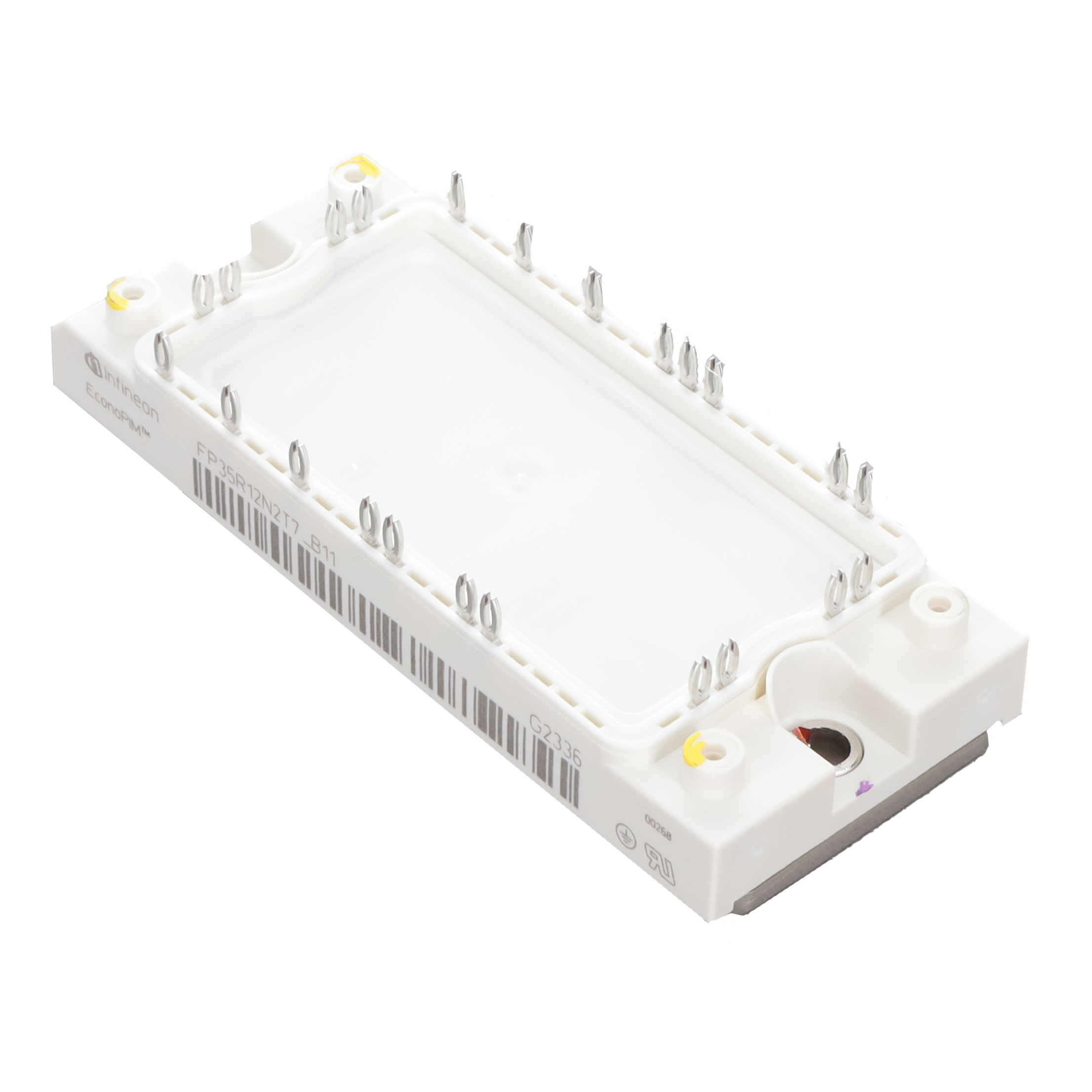

FP35R12N2T7B11BPSA2
LOW POWER ECONOManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Three Phase Inverter 1200 V 35 A 20 mW Chassis Mount AG-ECONO2B
Additional Information
Series: EconoPIM™ 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 35A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO2B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 35 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 7 µA |
| Input Capacitance (Cies) @ Vce | 6.62 nF @ 25 V |
