FP35R12N2T7B11BPSA1
LOW POWER ECONO AG-ECONO2B-711Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

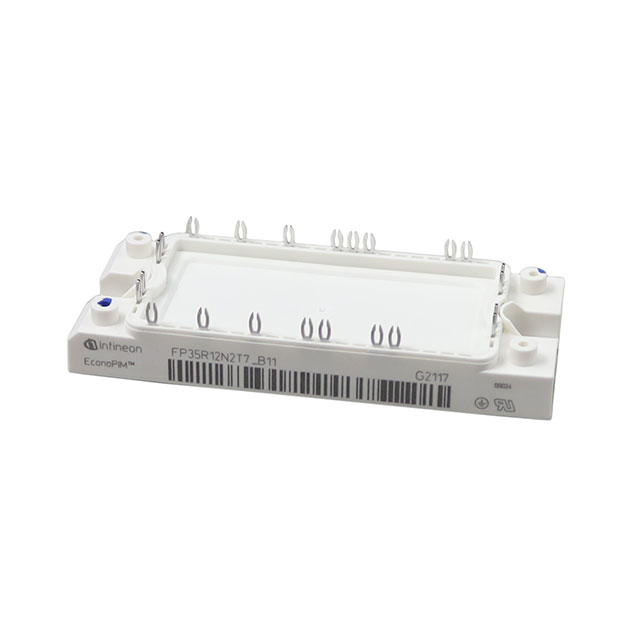

Infineon Technologies FP35R12N2T7B11BPSA1 is an EconoPIM™ 2 series IGBT module designed as a three-phase inverter. This Trench Field Stop IGBT module offers a 1200 V collector-emitter breakdown voltage and a maximum collector current of 35 A. It features a low on-state voltage of 1.6V at 15V Vge and 35A Ic, with a collector cutoff current of 7 µA. The module includes an integrated NTC thermistor for thermal management and is specified with an input capacitance (Cies) of 6.62 nF @ 25 V. Mounting is via chassis mount, and the device operates reliably within a temperature range of -40°C to 175°C (TJ). The AG-ECONO2B package is supplied in trays. This component is suited for applications in industrial motor drives and power factor correction.
Additional Information
Series: EconoPIM™ 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 35A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO2B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 35 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 7 µA |
| Input Capacitance (Cies) @ Vce | 6.62 nF @ 25 V |
