FP25R12U1T4BPSA1
IGBT MOD 1200V 39A 190WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FP25R12U1T4BPSA1 is a SmartPIM1 series Trench Field Stop IGBT module designed for three-phase inverter applications. This chassis-mount module offers a 1200 V collector-emitter breakdown voltage and a maximum collector current of 39 A. It dissipates up to 190 W with a typical Vce(on) of 2.25V at 15V Vge and 25A Ic. The module integrates an NTC thermistor for temperature monitoring and features a standard input. Key specifications include an input capacitance (Cies) of 1.45 nF at 25 V and a collector cutoff current of 1 mA. It operates within an ambient temperature range of -40°C to 150°C. This component is commonly utilized in industrial automation, motor drives, and power supply systems.
Additional Information
Series: SmartPIM1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 150°C |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 25A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 39 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 190 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 1.45 nF @ 25 V |
Request a Quote
Clients Also Buy
FP35R12U1T4BPSA1
IGBT MOD 1200V 54A 250W

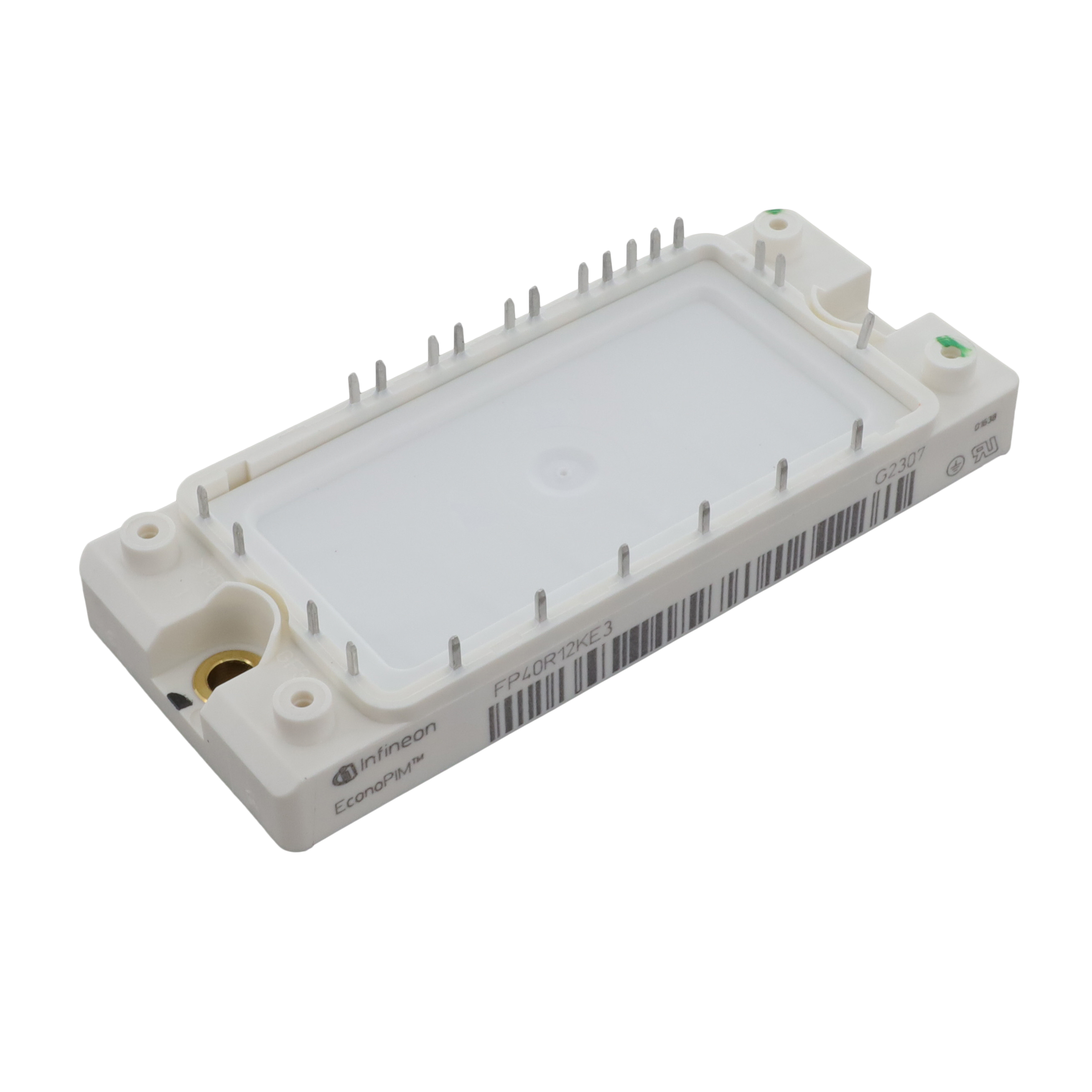

FP40R12KE3BPSA1
