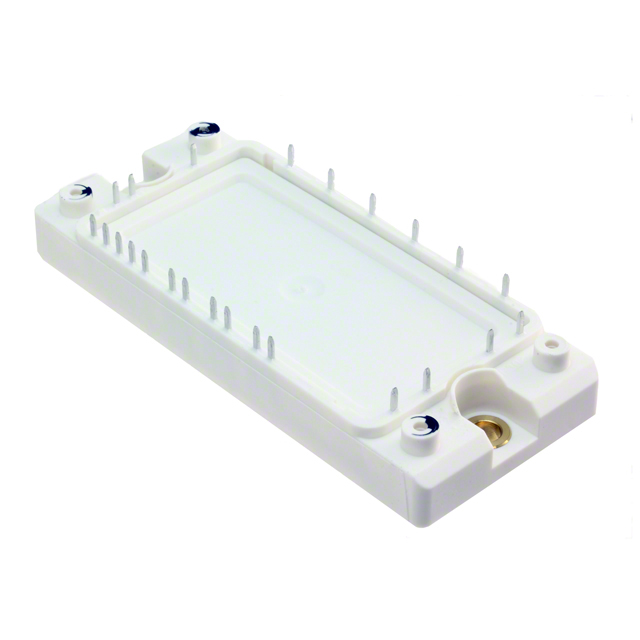

FP25R12KE3BOSA1
IGBT MOD 1200V 40A 155WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FP25R12KE3BOSA1 is a Trench Field Stop IGBT module designed for three-phase inverter applications. This chassis mount module offers a robust 1200 V collector-emitter breakdown voltage and a continuous collector current capability of 40 A. With a maximum power dissipation of 155 W, it is suitable for demanding power conversion tasks. The device features a standard input and an NTC thermistor for thermal monitoring. Key electrical parameters include a Vce(on) of 2.15V at 15V gate-emitter voltage and 25A collector current, and an input capacitance of 1.8 nF at 25V. Operating temperature ranges from -40°C to 125°C. This component finds application in industrial automation, renewable energy systems, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 25A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 155 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 1.8 nF @ 25 V |
