FP10R12W1T7B11BOMA1

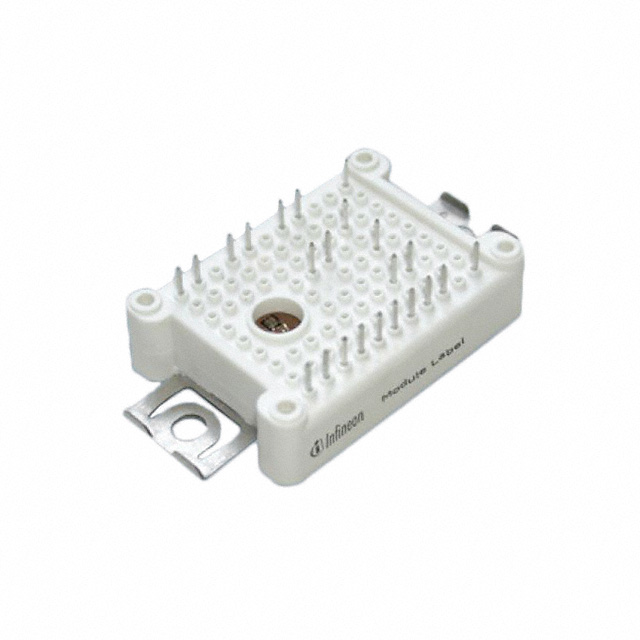

IGBT MODULE 1200V 10A 20MW EASYManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies' FP10R12W1T7B11BOMA1 is a TRENCHSTOP™ IGBT Module from the EasyPIM™ series, featuring a three-phase inverter configuration. This module offers a collector-emitter voltage of 1200 V and a maximum collector current of 10 A. It utilizes Trench Field Stop IGBT technology for efficient power switching. The module is designed for chassis mounting and includes an integrated NTC thermistor for temperature monitoring. Key electrical parameters include a Vce(on) of 1.6V at 15V/10A and a power dissipation rating of 20 mW. Applications for this component span industrial automation, power supplies, and motor drives. The device is supplied in Tray packaging.
Additional Information
Series: EasyPIM™, TRENCHSTOP™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 75°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 10A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-EASY1B-2 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 4.5 µA |
| Input Capacitance (Cies) @ Vce | 1.89 nF @ 25 V |
