FP100R12N2T7BPSA1
LOW POWER ECONO AG-ECONO2-4Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

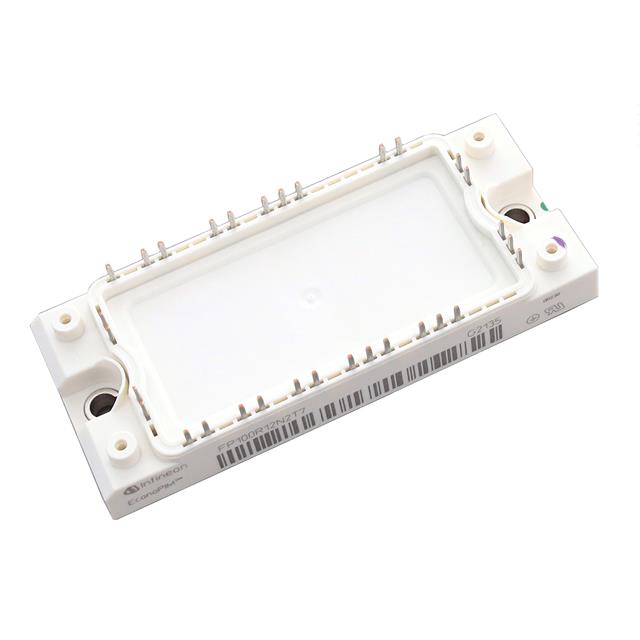

Infineon Technologies EconoPIM™ 2 IGBT Module, part number FP100R12N2T7BPSA1, is a Trench Field Stop IGBT featuring a three-phase inverter configuration. This module offers a 1200 V collector-emitter breakdown voltage and a 100 A collector current. The device includes an integrated NTC thermistor for thermal management and is housed in an AG-ECONO2B package suitable for chassis mounting. Its input stage incorporates a three-phase bridge rectifier, and the module exhibits a typical Vce(on) of 1.5V at 15V gate-emitter voltage and 100A collector current. With a low power dissipation of 20 mW and an operating temperature range of -40°C to 175°C, this component is well-suited for power conversion applications in areas such as industrial motor drives and renewable energy systems.
Additional Information
Series: EconoPIM™ 2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.5V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO2B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 10 µA |
| Input Capacitance (Cies) @ Vce | 21.7 nF @ 25 V |
