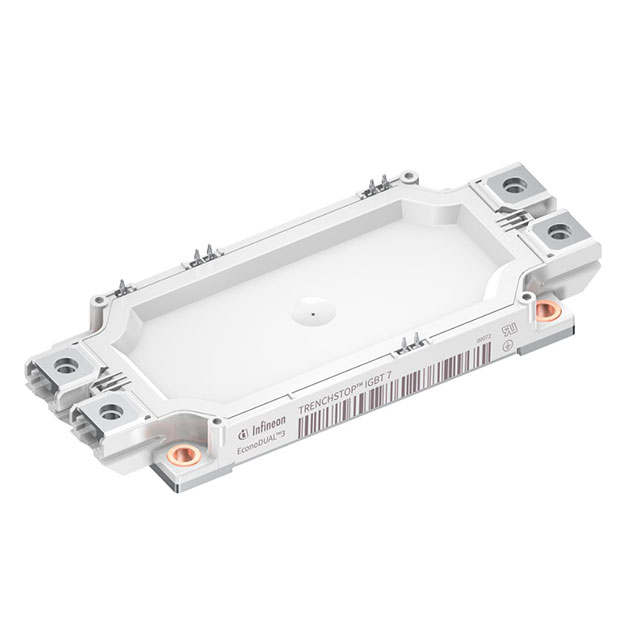

FF750R17ME7DB11BPSA1
MEDIUM POWER ECONOManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Half Bridge Inverter 1700 V 750 A 20 mW Chassis Mount
Additional Information
Series: EconoDUAL™ 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 750A |
| NTC Thermistor | Yes |
| Supplier Device Package | - |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 750 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 78.1 nF @ 25 V |
