FF600R12ME4EB11BPSA1
MEDIUM POWER ECONOManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

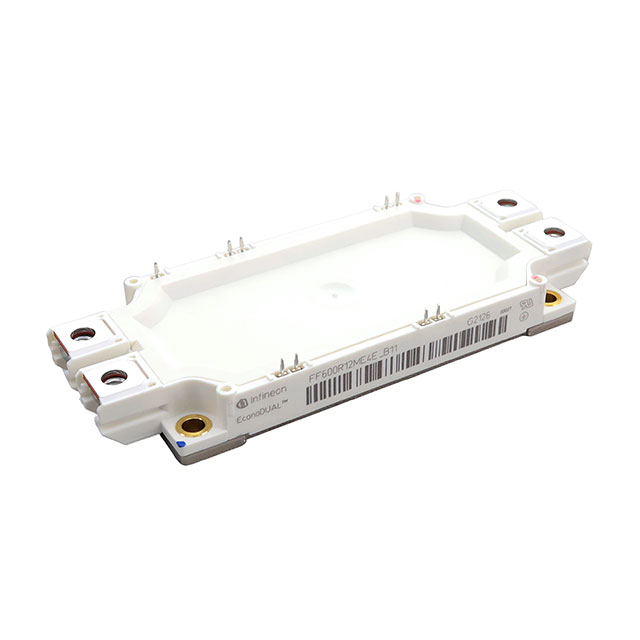

Infineon Technologies EconoDUAL™ 3 FF600R12ME4EB11BPSA1 is a Trench Field Stop IGBT module featuring two independent switches. This component offers a maximum collector-emitter voltage of 1200 V and a continuous collector current capability of 600 A. The module utilizes an AG-ECONOD-3 package for chassis mounting and includes an integrated NTC thermistor for temperature monitoring. With a typical switch-on voltage (Vce(on)) of 2.1 V at 15 V gate-emitter voltage and 600 A collector current, and an input capacitance (Cies) of 37 nF at 25 V, this device is well-suited for applications in industrial motor drives, renewable energy systems, and power supplies. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: EconoDUAL™ 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 600A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONOD-3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 600 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 3 mA |
| Input Capacitance (Cies) @ Vce | 37 nF @ 25 V |
