FF600R12ME4CPBPSA1
IGBT MODULE VCES 600V 600AManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies EconoDUAL™3 FF600R12ME4CPBPSA1 is a Trench Field Stop IGBT Module designed for high-power applications. This half-bridge inverter configuration features a collector-emitter voltage (Vces) of 1200 V and a maximum continuous collector current (Ic) of 1060 A. The module offers a low Vce(on) of 2.1V at 15V gate-source voltage and 600A collector current, with a maximum power dissipation rating of 4050 W. It includes an integrated NTC thermistor for temperature monitoring and is chassis mounted for efficient thermal management. Input capacitance (Cies) is 37 nF at 25 V. Operating temperature ranges from -40°C to 150°C. This component is utilized in industrial automation, renewable energy systems, and electric vehicle powertrains. The AG-ECONOD package is supplied in trays.
Additional Information
Series: EconoDUAL™3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 600A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONOD |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 1060 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 4050 W |
| Current - Collector Cutoff (Max) | 3 mA |
| Input Capacitance (Cies) @ Vce | 37 nF @ 25 V |
Request a Quote
Clients Also Buy

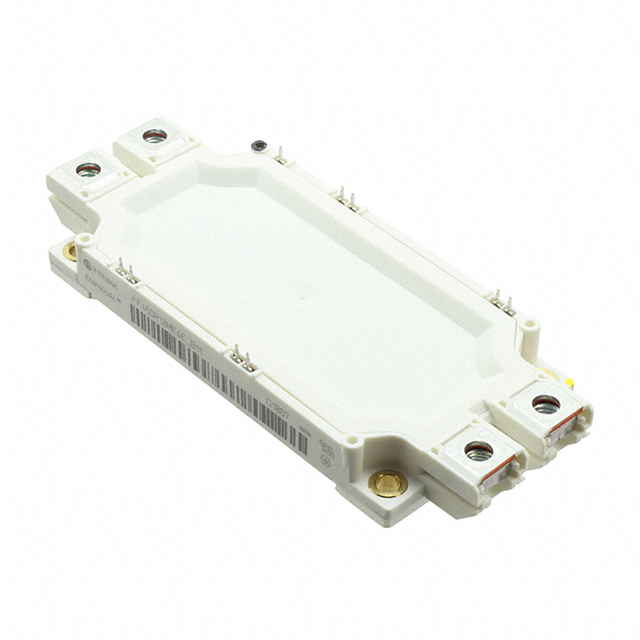

FF450R12ME4EB11BPSA1
