FF600R12ME4CBOSA1
IGBT MOD 1200V 1060A 4050WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

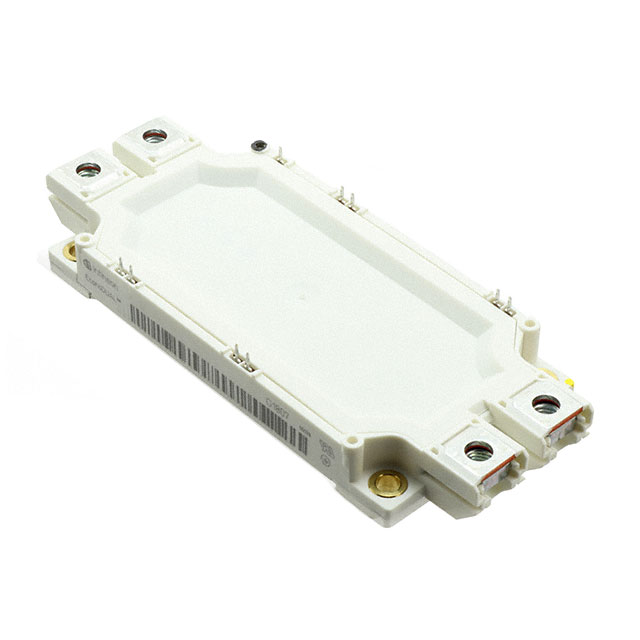

Infineon Technologies FF600R12ME4CBOSA1 is a Trench Field Stop IGBT module designed for demanding power applications. This half-bridge configured module offers a robust 1200V collector-emitter breakdown voltage and a high continuous collector current capability of 1060A. With a maximum power dissipation of 4050W and a low Vce(on) of 2.1V at 15V gate-emitter voltage and 600A collector current, it ensures efficient power conversion. The module features an integrated NTC thermistor for thermal monitoring and is chassis mountable, facilitating integration into various power systems. Its typical applications span industrial motor drives, renewable energy inverters, and electric vehicle power trains. The input capacitance (Cies) is 37nF at 25V, and it operates within a temperature range of -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 600A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 1060 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 4050 W |
| Current - Collector Cutoff (Max) | 3 mA |
| Input Capacitance (Cies) @ Vce | 37 nF @ 25 V |
