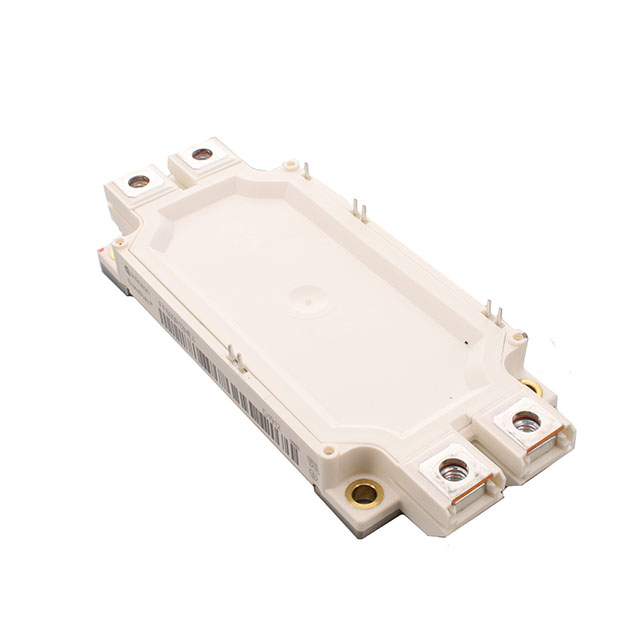

FF600R12ME4BOSA1
IGBT MODULE 1200V 4050WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FF600R12ME4BOSA1 is a 2 Independent Trench Field Stop IGBT module from the EconoDUAL™ 3 series. This chassis mount module offers a 1200 V collector-emitter breakdown voltage and a maximum power dissipation of 4050 W. Key electrical characteristics include a Vce(on) of 2.1 V at 15 V Vge and 600 A Ic, with a collector cutoff current of 3 mA. The module features an input capacitance (Cies) of 37 nF at 25 V and includes an integrated NTC thermistor for thermal management. It operates across a temperature range of -40°C to 150°C and is supplied in tray packaging. This component is suitable for applications in industrial motor control, renewable energy systems, and power supplies.
Additional Information
Series: EconoDUAL™ 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 600A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 4050 W |
| Current - Collector Cutoff (Max) | 3 mA |
| Input Capacitance (Cies) @ Vce | 37 nF @ 25 V |
