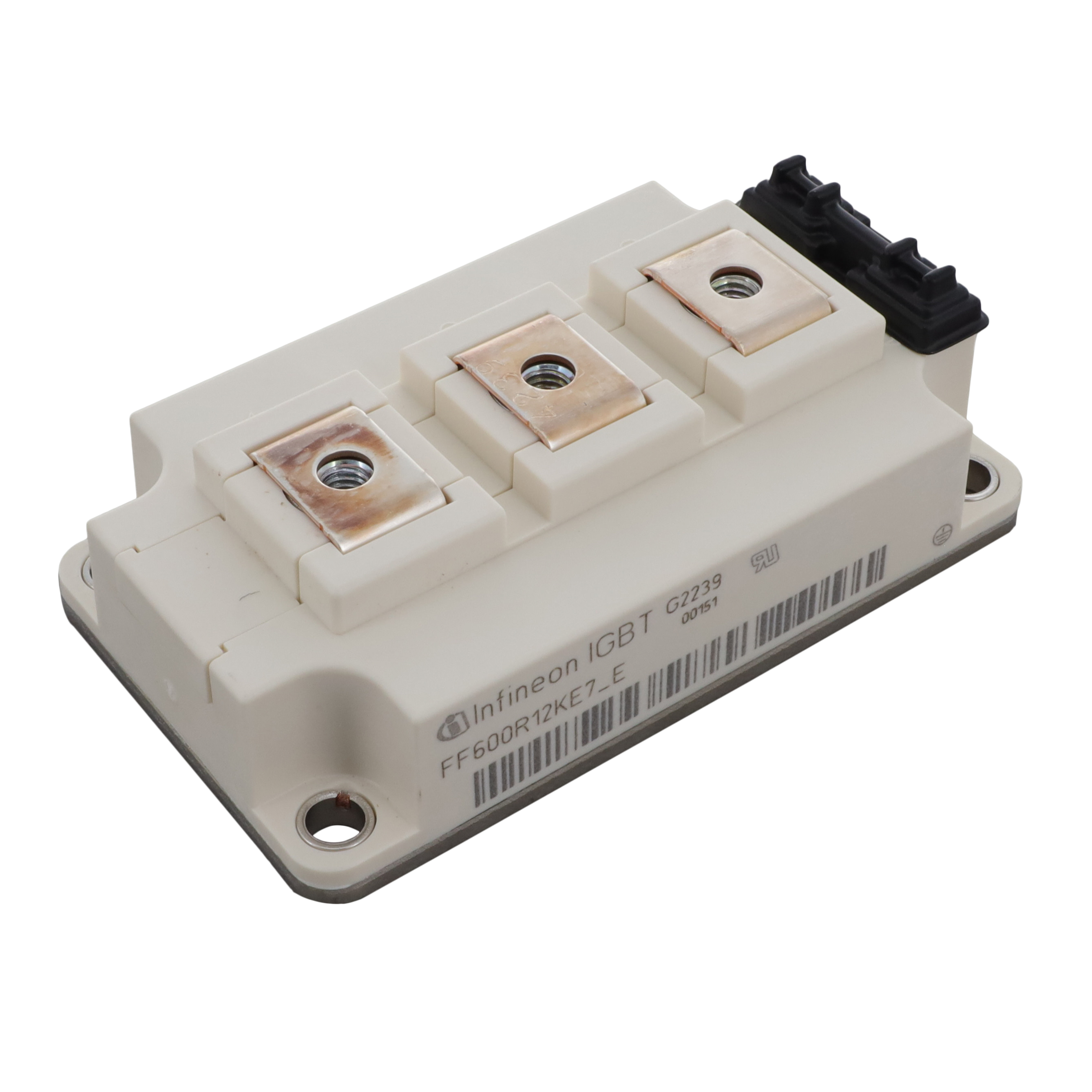

FF600R12KE7EHPSA1
MEDIUM POWER 62MMManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Half Bridge Inverter 1200 V 600 A Chassis Mount AG-62MMHB
Additional Information
Series: CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | AG-62MMHB |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 600 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 92.3 nF @ 25 V |
Request a Quote
