FF600R12IP4PBPSA1
PP IHM I XHP 1 7KV AG-PRIME2-411Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

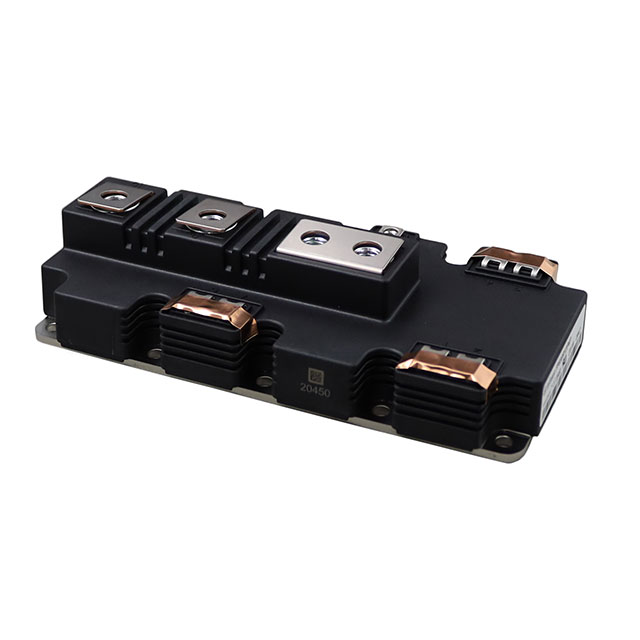

The Infineon Technologies FF600R12IP4PBPSA1 is a Trench Field Stop IGBT module from the PrimePACK™2 series. This component is configured with two independent IGBTs, offering a 1200 V collector-emitter breakdown voltage and a maximum collector current of 600 A. Featuring a low on-state voltage of 2.05V at 15V gate-emitter voltage and 600A collector current, it also includes an integrated NTC thermistor for thermal monitoring. The module is designed for chassis mounting and operates within a temperature range of -40°C to 150°C. Its low input capacitance of 37 nF at 25V facilitates efficient switching. This device is utilized in demanding applications across industrial power, motor drives, and renewable energy sectors.
Additional Information
Series: PrimePACK™2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 600A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-PRIME2 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 600 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 37 nF @ 25 V |
