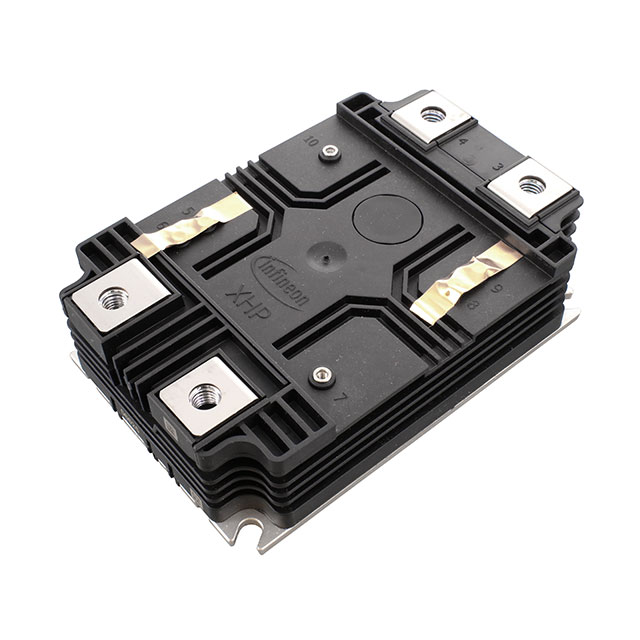

FF450R33T3E3B5P3BPSA1
IHV IHM T XHP 3 3-6 5KManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop 2 Independent 3300 V 450 A 1000000 W Chassis Mount AG-XHP100-6
Additional Information
Series: XHP™3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.75V @ 15V, 450A |
| NTC Thermistor | No |
| Supplier Device Package | AG-XHP100-6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 450 A |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V |
| Power - Max | 1000000 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 84 nF @ 25 V |
Request a Quote
Clients Also Buy

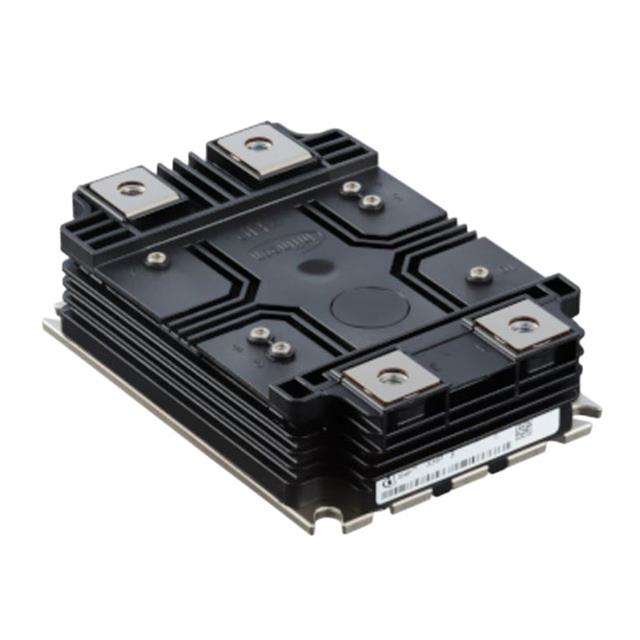

FF225R65T3E3BPSA1
