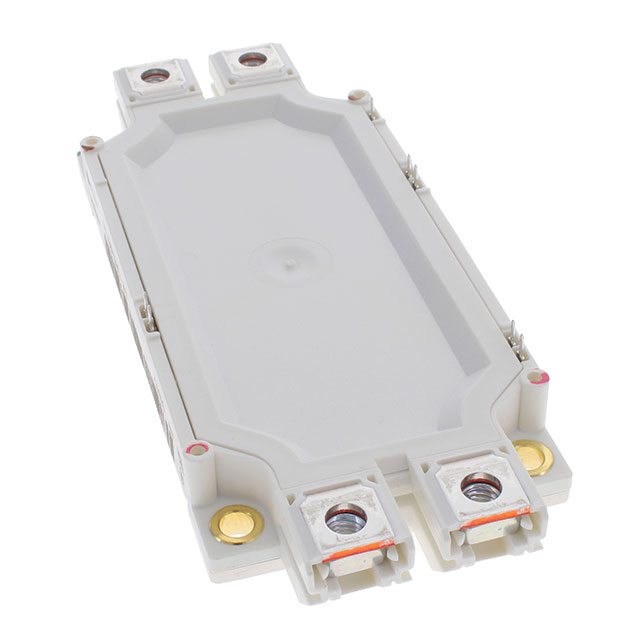

FF450R12ME4B11BPSA1
IGBT MOD 1200V 675A 2250WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies EconoDUAL™ 3 FF450R12ME4B11BPSA1 is a high-power IGBT module featuring Trench Field Stop technology. This module offers a robust 1200 V collector-emitter breakdown voltage and a maximum collector current of 675 A, with a power dissipation capability of 2250 W. Designed for demanding applications, it boasts a low Vce(on) of 2.1V at 15V gate-emitter voltage and 450A collector current. The internal configuration includes two independent IGBTs, and it comes with an integrated NTC thermistor for thermal monitoring. Input capacitance (Cies) is specified at 28 nF @ 25 V. The module is chassis mountable for efficient heat dissipation and operates across a wide temperature range of -40°C to 150°C. This component is commonly utilized in industrial automation, renewable energy systems, and electric vehicle powertrains.
Additional Information
Series: EconoDUAL™ 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 450A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 675 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 2250 W |
| Current - Collector Cutoff (Max) | 3 mA |
| Input Capacitance (Cies) @ Vce | 28 nF @ 25 V |
