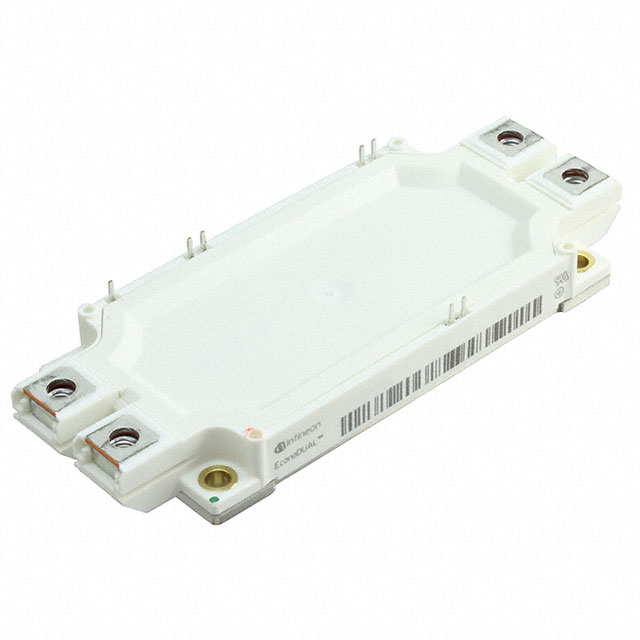

FF300R17ME4BOSA1
IGBT MOD 1700V 375A 1800WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module NPT Half Bridge 1700 V 375 A 1800 W Chassis Mount Module
Additional Information
Series: CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 300A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 375 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 1800 W |
| Current - Collector Cutoff (Max) | 3 mA |
