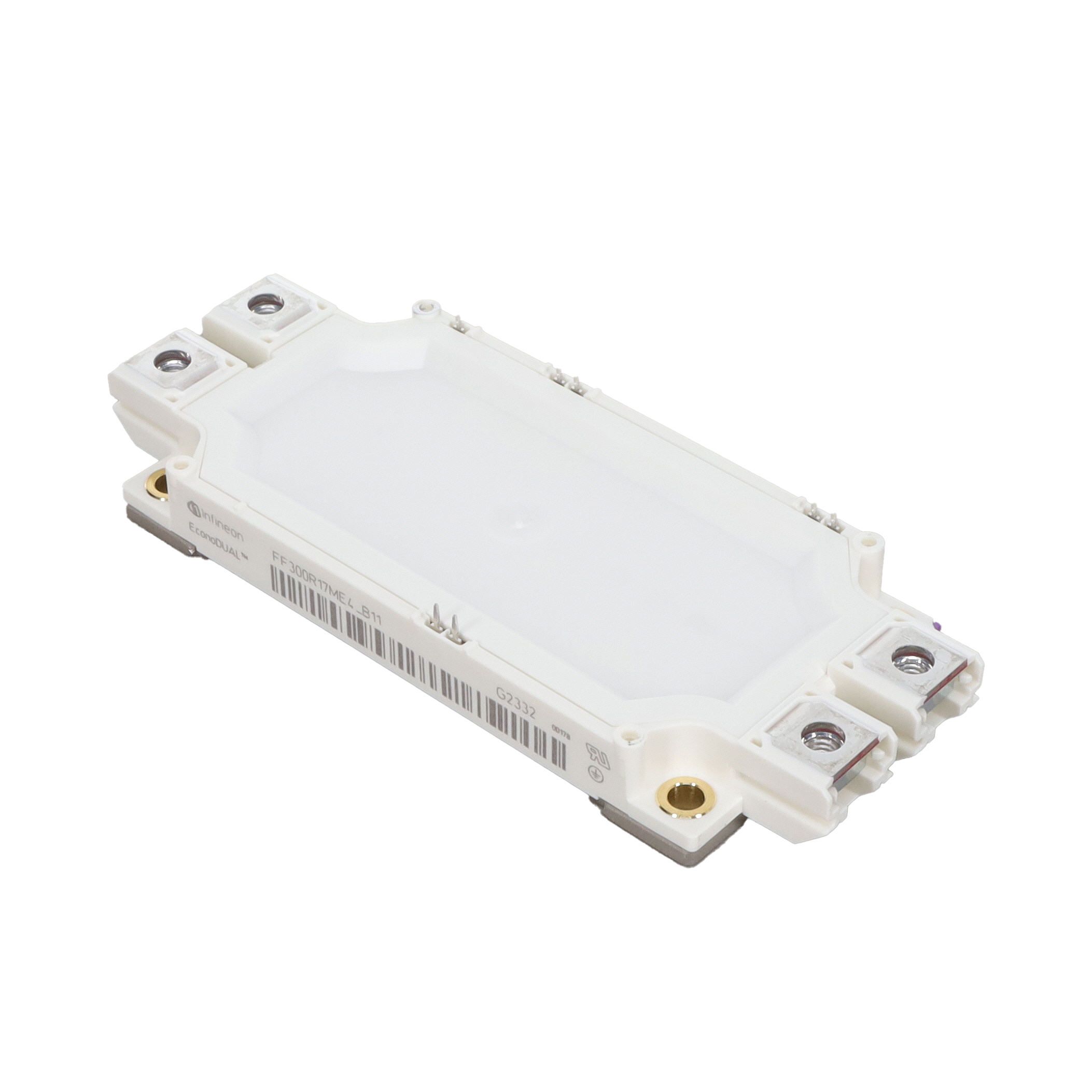

FF300R17ME4B11BPSA1
MEDIUM POWER ECONO AG-ECONOD-411Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop 2 Independent 1700 V 375 A 1800 W Chassis Mount AG-ECONOD
Additional Information
Series: EconoDUAL™ 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 300A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONOD |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 375 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 1800 W |
| Current - Collector Cutoff (Max) | 3 mA |
| Input Capacitance (Cies) @ Vce | 24.5 nF @ 25 V |
