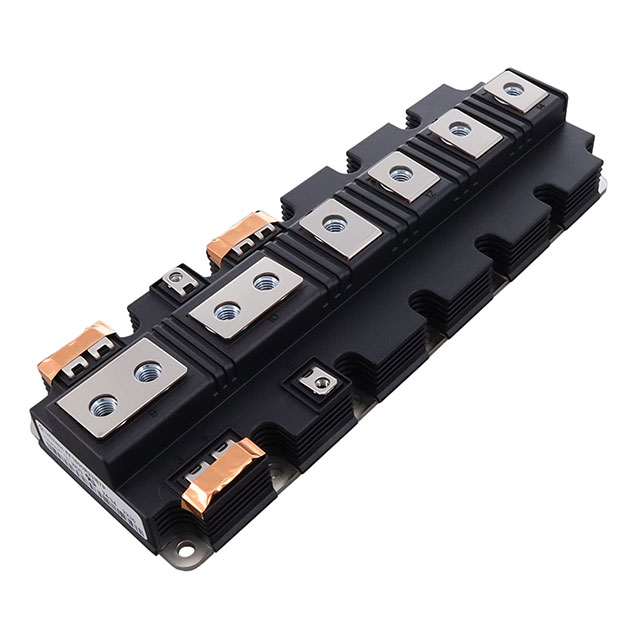

FF1800R23IE7PBPSA1
IGBT MODULEManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FF1800R23IE7PBPSA1 is a high-power IGBT module from the PrimePACK™ 3+ series, featuring a 2300 V collector-emitter breakdown voltage and a maximum collector current of 1800 A. This module offers two independent IGBTs within a robust chassis mount package. Key electrical characteristics include a Vce(on) of 2.26 V at 15 V gate-emitter voltage and 1.8 kA collector current, and an input capacitance (Cies) of 420 nF at 25 V. Operating across a temperature range of -40°C to 150°C (TJ), this component is suitable for demanding applications in renewable energy, motor drives, and industrial power conversion.
Additional Information
Series: PrimePACK™3+ BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.26V @ 15V, 1.8kA |
| NTC Thermistor | No |
| Supplier Device Package | PrimePACK™ 3+ |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 1800 A |
| Voltage - Collector Emitter Breakdown (Max) | 2300 V |
| Current - Collector Cutoff (Max) | 30 mA |
| Input Capacitance (Cies) @ Vce | 420 nF @ 25 V |
Request a Quote
Clients Also Buy
FF1500R12IE5PBPSA1
IGBT MOD 1200V 1500A AGPRIME3+-5
FF1500R17IP5PBPSA1
IGBT MOD 1700V 1500A AGPRIME3+-5

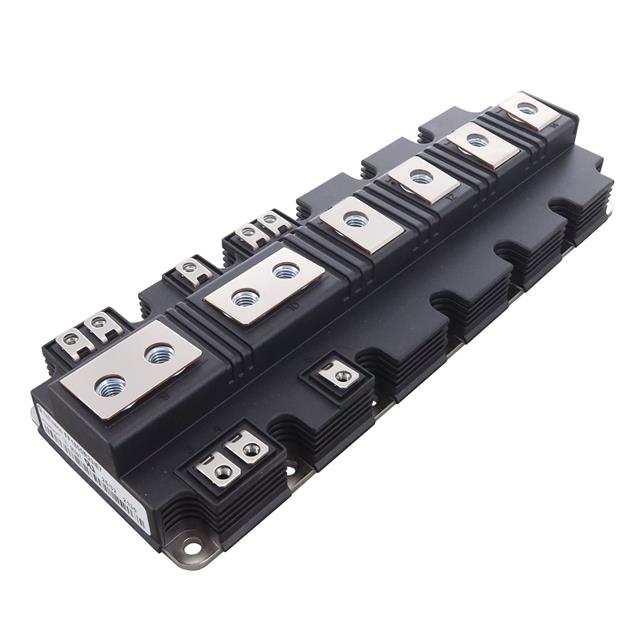

FF1800R23IE7BPSA1
