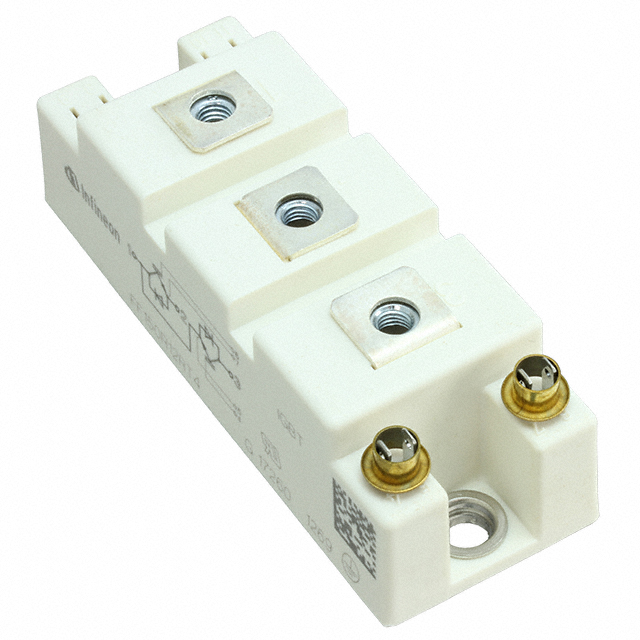

FF150R12RT4HOSA1
IGBT MOD 1200V 150A 790WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies C Series FF150R12RT4HOSA1 Trench Field Stop IGBT module. This half-bridge configuration offers a 1200V collector-emitter breakdown voltage and a 150A collector current capability. Featuring a low Vce(on) of 2.15V at 15V gate-emitter voltage and 150A collector current, this module is designed for high-efficiency power conversion. With a maximum power dissipation of 790W, it is suitable for demanding applications across industrial automation, renewable energy systems, and electric vehicle powertrains. The module utilizes a chassis mount for robust thermal management and operates within a temperature range of -40°C to 150°C (TJ). Supplied in tray packaging.
Additional Information
Series: CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 150A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 790 W |
| Current - Collector Cutoff (Max) | 1 mA |
Request a Quote
