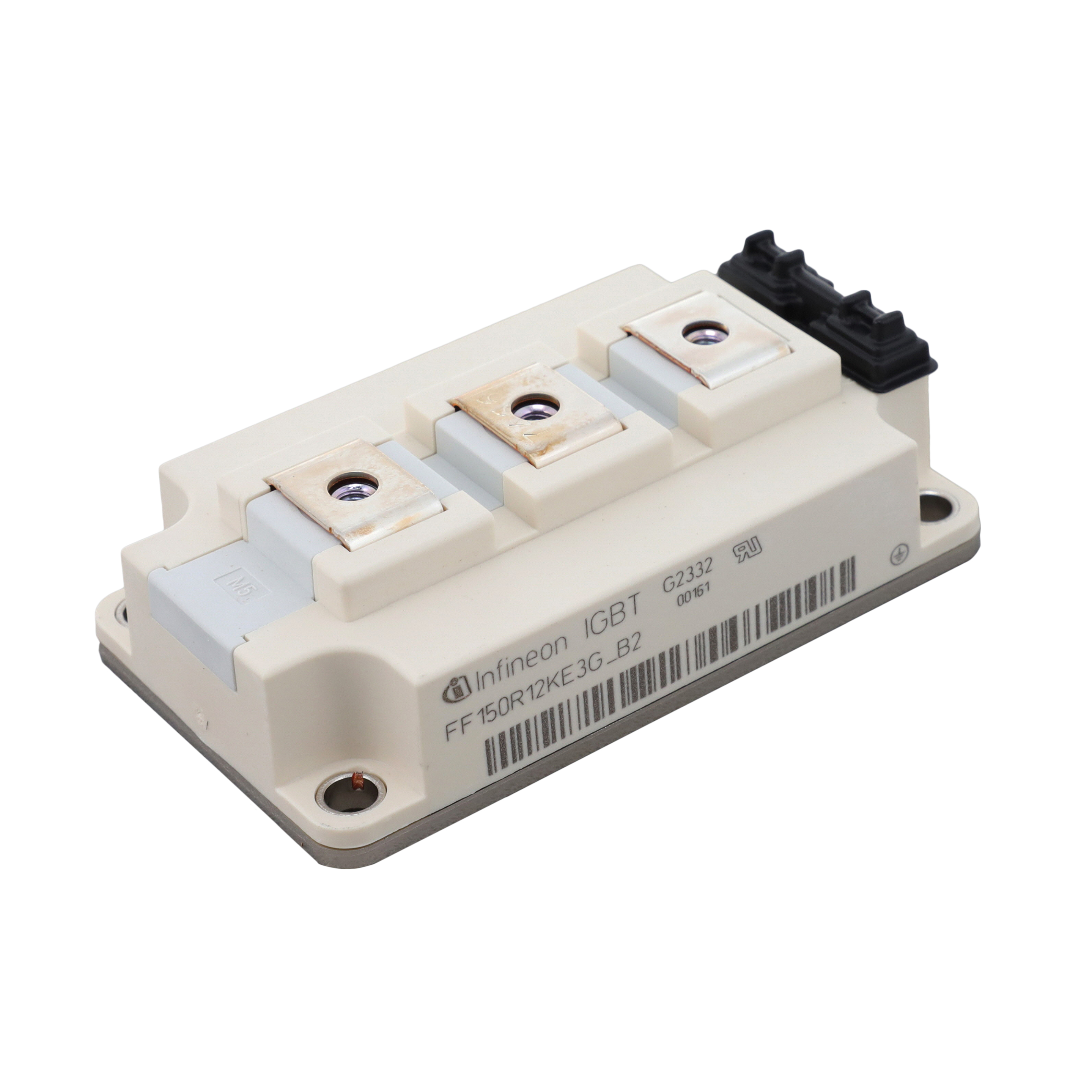

FF150R12KE3GB2HOSA1
IGBT MODULE VCES 1200V 150AManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Half Bridge Inverter 1200 V 225 A 780 W Chassis Mount Module
Additional Information
Series: CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge Inverter |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 150A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 225 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 780 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 11 nF @ 25 V |
