FF1200XTR17T2P5PBPSA1
XHP LVManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

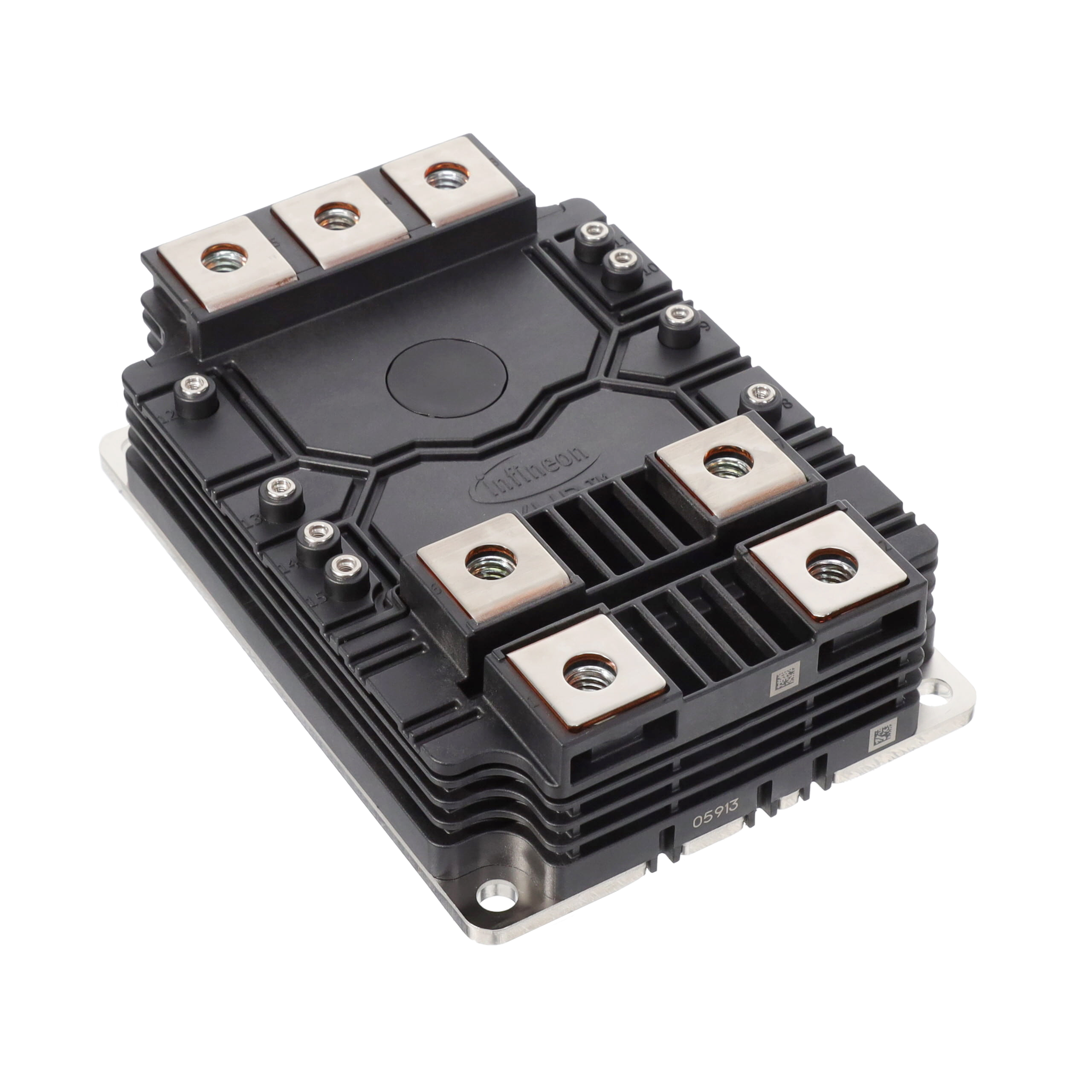

Infineon Technologies XHP™2 series FF1200XTR17T2P5PBPSA1 is a Trench Field Stop IGBT module designed for demanding power applications. This half-bridge inverter configuration features robust performance with a 1700 V collector-emitter breakdown voltage and a maximum collector current of 1200 A. The module offers a low on-state voltage (Vce(on)) of 2.25 V at 15 V gate-emitter voltage and 1.2 kA, contributing to high efficiency. With a maximum power rating of 1,200,000 W and an operating junction temperature range of -40°C to 175°C, it is suitable for industrial and high-power motor drives. The integrated NTC thermistor provides thermal monitoring capabilities. Mounting is via chassis mount for effective heat dissipation.
Additional Information
Series: XHP™2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 1.2kA |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 1200 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 1200000 W |
| Current - Collector Cutoff (Max) | 10 mA |
| Input Capacitance (Cies) @ Vce | 56000 pF @ 25 V |
