FF100R12RT4HOSA1

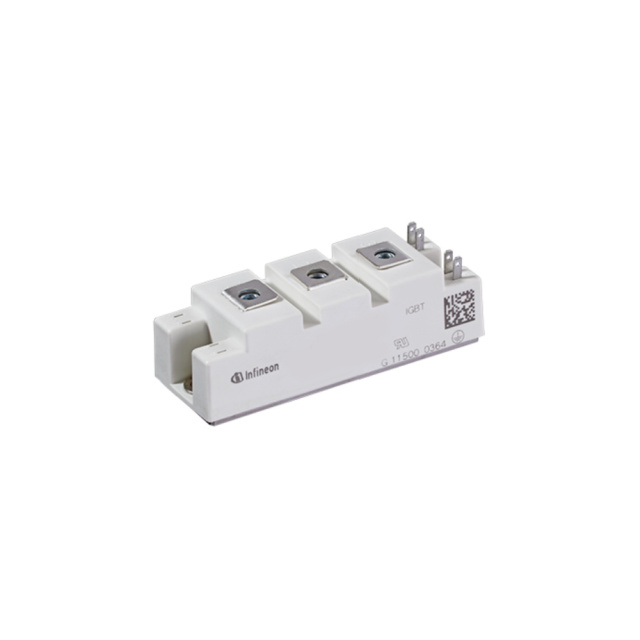

IGBT MOD 1200V 100A 555WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FF100R12RT4HOSA1 is a Trench Field Stop IGBT Module designed for high-power applications. This module features two independent IGBTs, each capable of handling 1200 V collector-emitter breakdown voltage and 100 A continuous collector current. The maximum power dissipation is 555 W. With a low on-state voltage of 2.15V at 15V gate-emitter voltage and 100A collector current, it ensures efficient power switching. The input capacitance (Cies) is 630 nF at 25V. This chassis mount module operates reliably within a temperature range of -40°C to 150°C. It utilizes a standard input for control signals. This component is commonly found in industrial motor drives, renewable energy systems, and power supply applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 100A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 555 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 630 nF @ 25 V |
