FF1000R17IE4S4BOSA2
IGBT MOD 1700V 1390A AGPRIME3-1Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies PrimePACK™3 IGBT module, part number FF1000R17IE4S4BOSA2, offers a robust solution for high-power applications. This module features two independent IGBTs with a maximum collector-emitter voltage of 1700 V and a continuous collector current rating of 1390 A. The Vce(on) is specified at 2.45V at 15V Vge and 1000A Ic, with a collector cutoff current of 5 mA. Its AG-PRIME3-1 package facilitates chassis mounting and includes an integrated NTC thermistor for thermal management. With a maximum power dissipation of 6250 W and an operating temperature range of -40°C to 150°C, this module is suitable for demanding industrial sectors such as traction, renewable energy, and industrial drives. Input capacitance (Cies) is 81 pF at 25 V.
Additional Information
Series: PrimePACK™3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 1000A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-PRIME3-1 |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 1390 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 6250 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 81 pF @ 25 V |
Request a Quote
Clients Also Buy
DF1400R12IP4DBOSA1
IGBT MOD 1200V 1400A 7700W

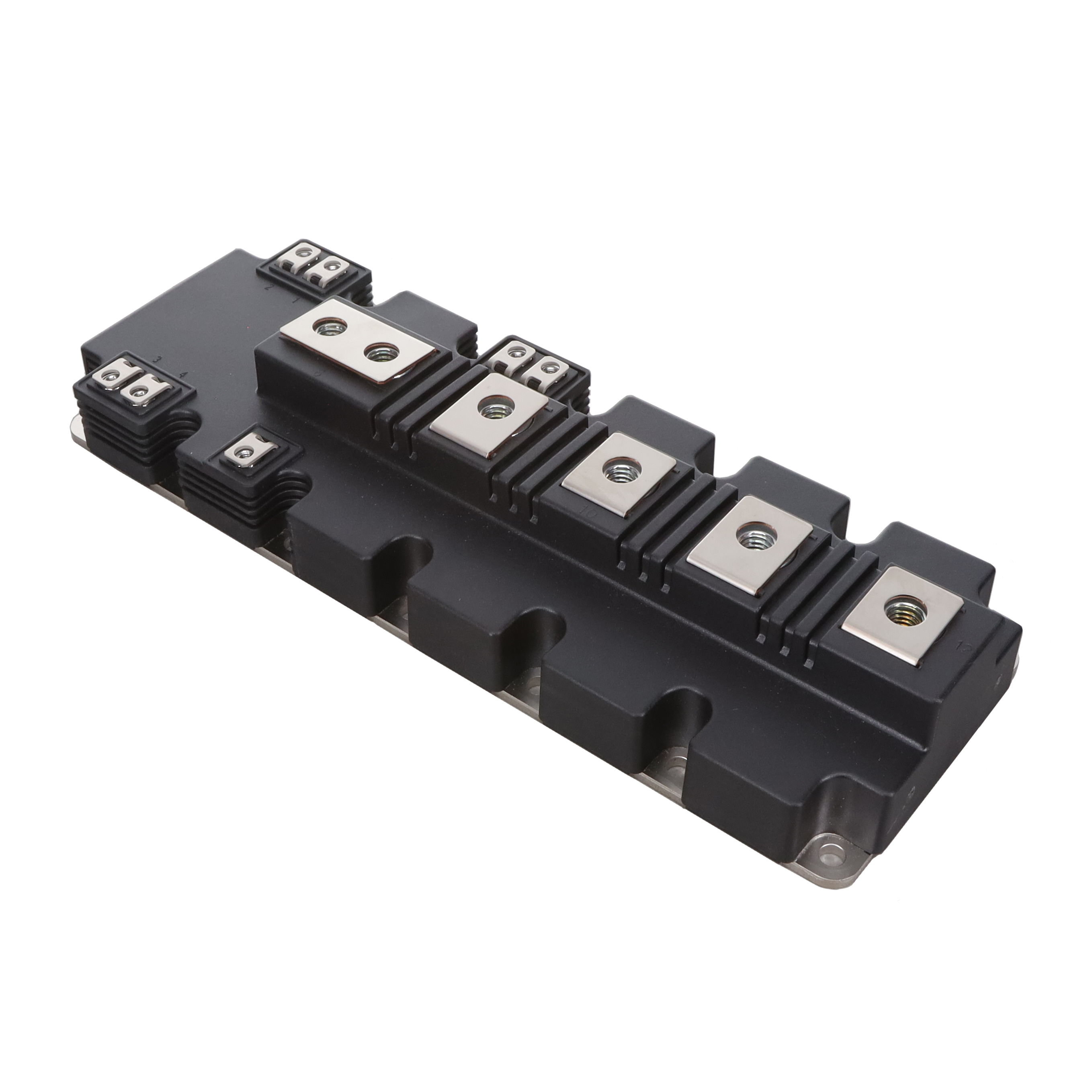

FF1000R17IE4DB2BOSA1
IGBT MODULE 1700V 6250W

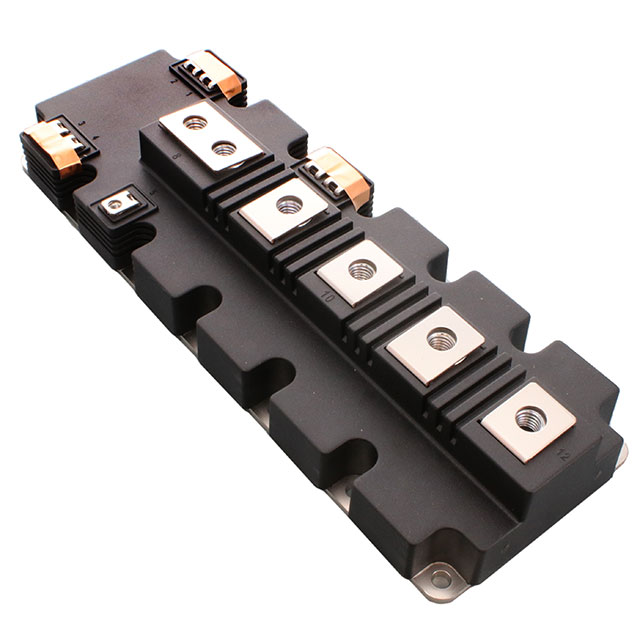

FF1400R17IP4PBOSA1
