F4150R17N3P4B58BPSA1
LOW POWER ECONO AG-ECONO3B-411Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Full Bridge Inverter 1700 V 150 A 20 mW Chassis Mount AG-ECONO3B
Additional Information
Series: EasyPACK™3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Full Bridge Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 150A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-ECONO3B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 12.3 nF @ 25 V |
Request a Quote
Clients Also Buy

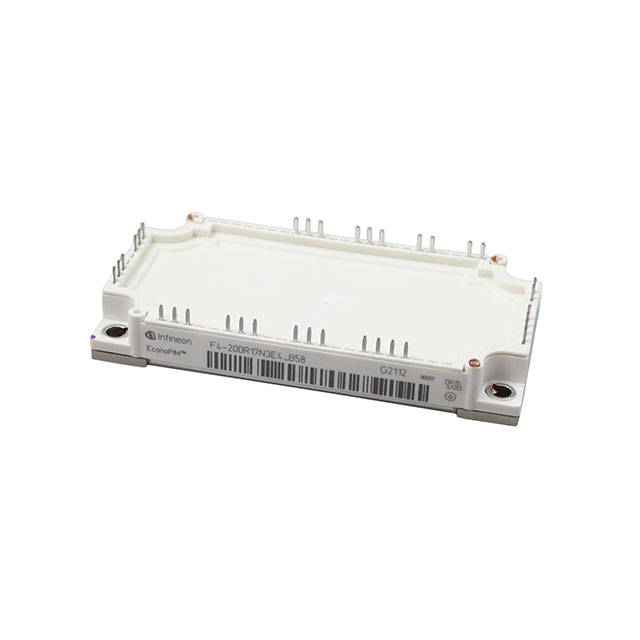

F4200R17N3E4B58BPSA1
