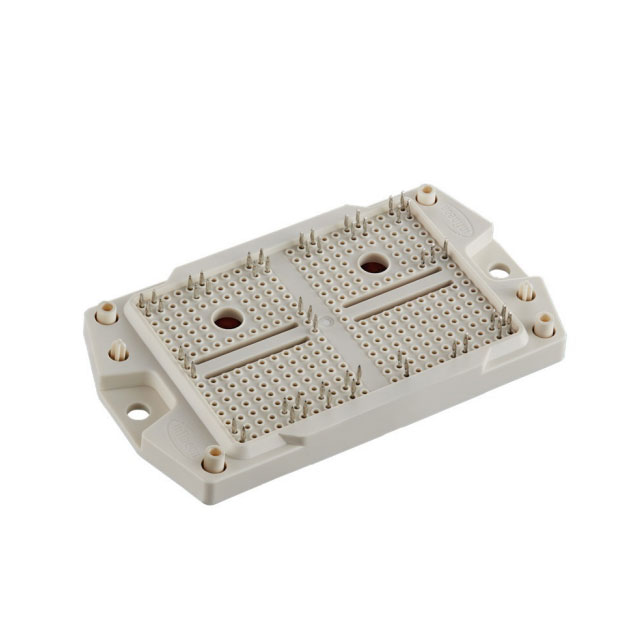

F3L400R10W3S7FB11BPSA1
IGBT MODULE LOW POWER EASYManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Three Level Inverter 950 V 220 A Chassis Mount AG-EASY3B
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 150A |
| NTC Thermistor | Yes |
| Supplier Device Package | AG-EASY3B |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 220 A |
| Voltage - Collector Emitter Breakdown (Max) | 950 V |
| Current - Collector Cutoff (Max) | 71 µA |
| Input Capacitance (Cies) @ Vce | 49.2 nF @ 25 V |
Request a Quote
