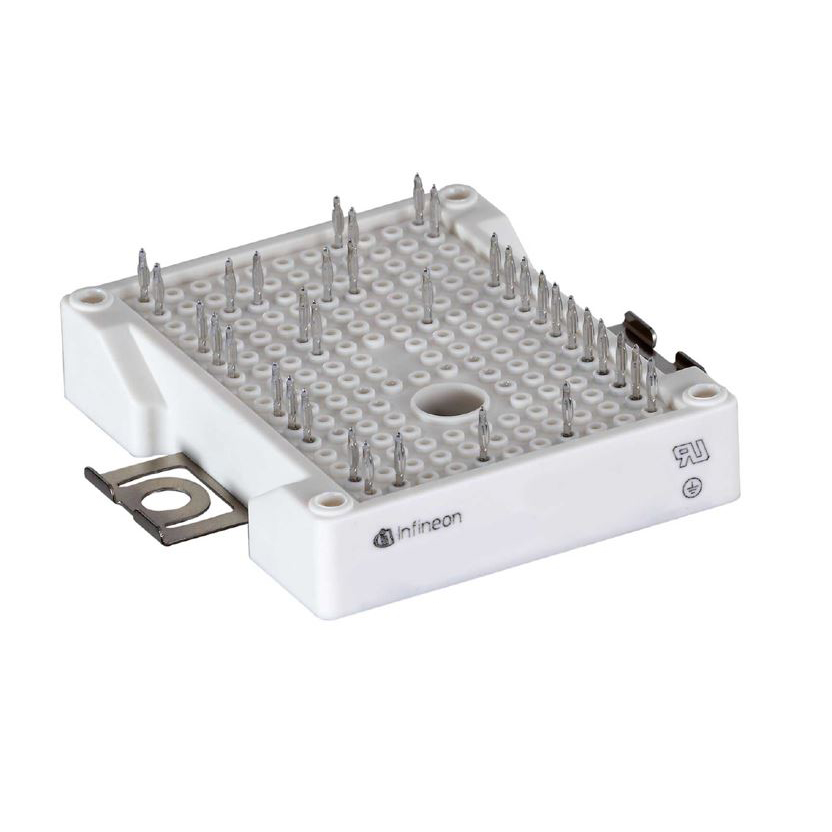

F3L200R07W2S5PB95BPSA1
F3L200R07W2S5PB95BPSA1Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Three Level Inverter 650 V 200 A Chassis Mount
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.67V @ 15V, 150A |
| NTC Thermistor | Yes |
| Supplier Device Package | - |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Cutoff (Max) | 45 µA |
| Input Capacitance (Cies) @ Vce | 14300 pF @ 25 V |
