DDB6U84N16RRBPSA1
LOW POWER ECONO AG-ECONO2A-211Manufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

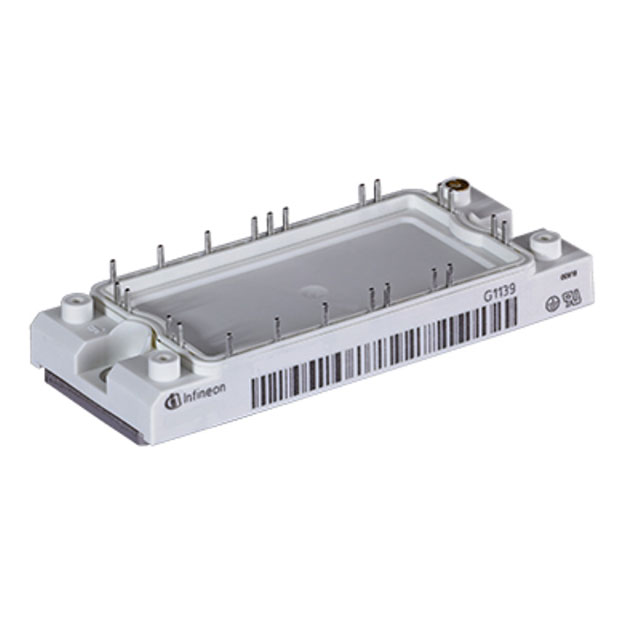

Infineon Technologies DDB6U84N16RRBPSA1 is a single chopper IGBT module designed for high-power applications. This component offers a robust 1200 V collector-emitter breakdown voltage and a continuous collector current capability of 50 A, with a maximum power dissipation of 350 W. The module features a low saturation voltage of 3.2V at 20V gate-emitter voltage and 50A collector current, minimizing conduction losses. Its input capacitance is specified at 3.3 nF at 25 V. Manufactured with a chassis mount design for efficient thermal management, this module operates reliably up to a junction temperature of 150°C. The AG-ECONO2A package is supplied in trays. This IGBT module is suitable for use in industrial motor drives, renewable energy systems, and power grid applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single Chopper |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 20V, 50A |
| NTC Thermistor | No |
| Supplier Device Package | AG-ECONO2A |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 350 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 3.3 nF @ 25 V |
